Shigiya GPH-30B/75 CNC Cylindrical Grinder with Fanuc Control, Marposs Gauging and Meister Handwheels
Have one to sell?
ConditionUsed
1 available

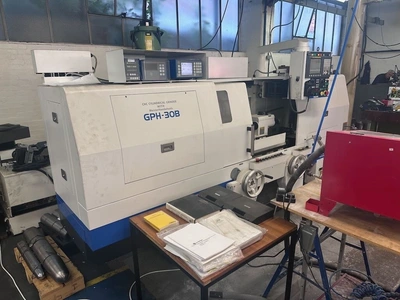

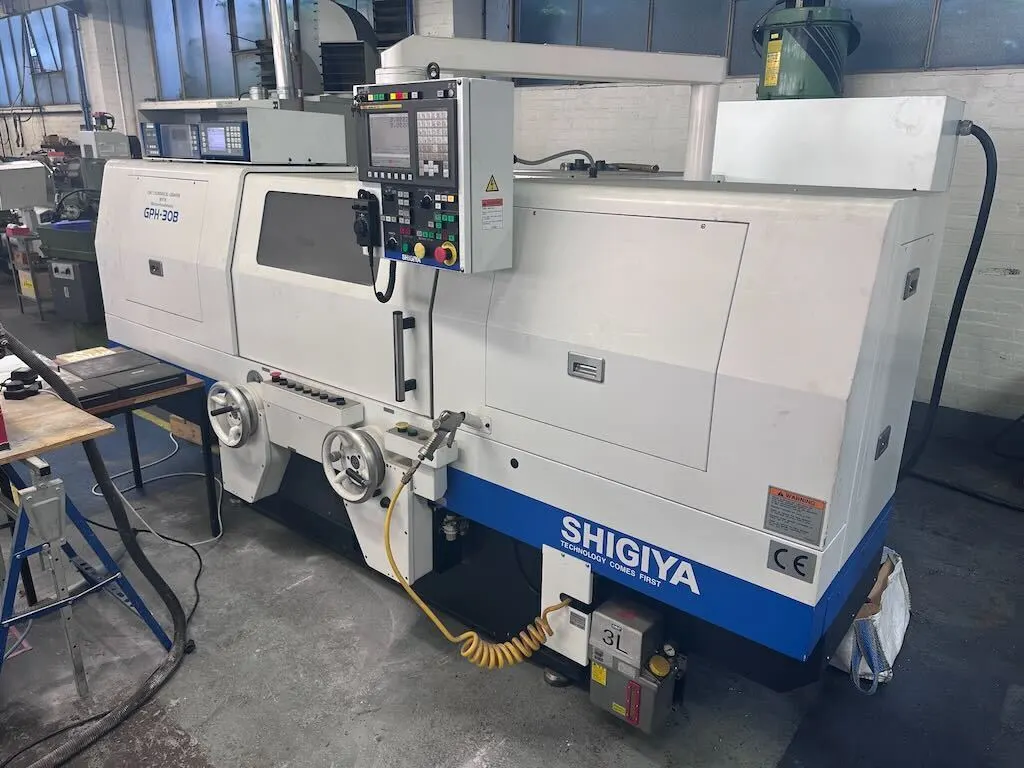

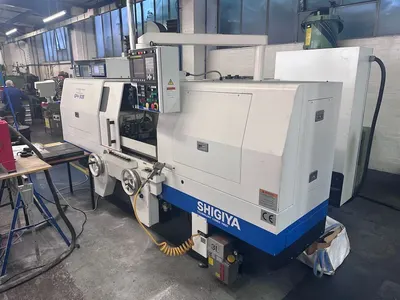

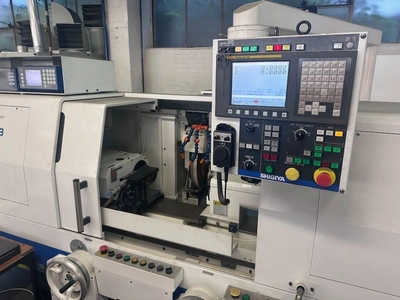

2016 Shigiya GPH-30B/75 CNC Precision Cylindrical Grinder, manufactured in Japan and fitted with Fanuc Series 0i-TD CNC control.
Featuring an uprated 7.5 kW grinding spindle with 508 mm grinding wheel capacity, 750 mm between centres and 300 mm swing over table.

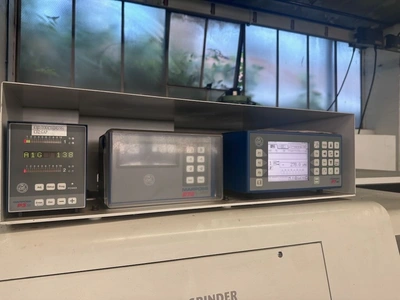

Equipped with Shigiya MeisterHandwheel manual/CNC operation and an extensive Marposs gauging package, including P7ME digital gauging, P3SE touch/dress and gap detection, and E78 wheel balancing control.
Complete with grinding wheel dressing facilities, Daikin oil cooling unit, SKF automatic lubrication, coolant system, enclosed working area, and original manuals.
A well-equipped precision cylindrical grinder suitable for toolroom, subcontract, and production grinding applications.
Shigiya GPH-30B/75 CNC Cylindrical Grinder with Fanuc Control and Marposs Gauging
Technical Specifications

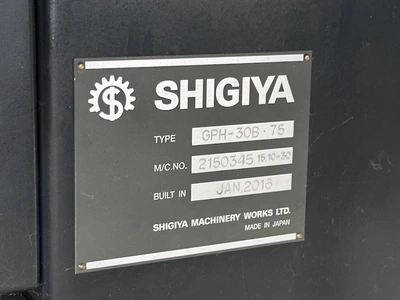

Manufacturer: Shigiya Machinery Works Ltd, Japan
Model: GPH-30B/75
Year: January 2016

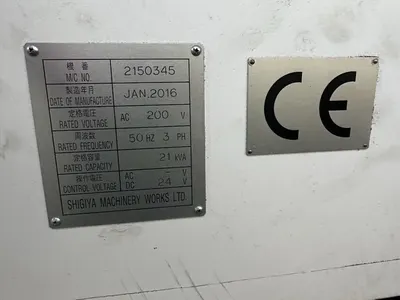

Serial Number: 2150345

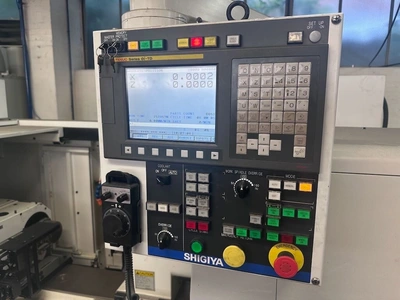

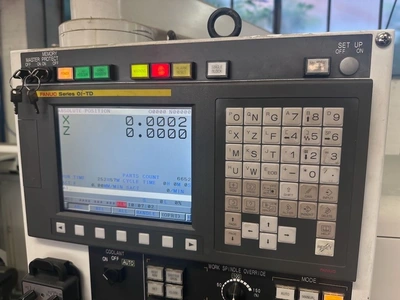

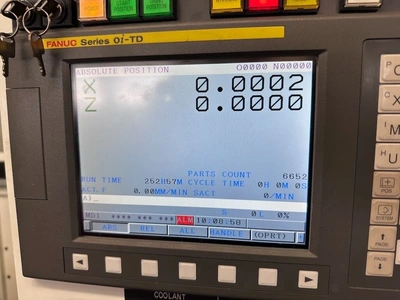

CNC Control: Fanuc Series 0i-TD
Machine Type: CNC External Cylindrical Grinder
Swing Over Table: 300 mm
Distance Between Centres: 750 mm
Maximum Workpiece Weight: 150 kg
Grinding Wheel Diameter: 508 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Width: 30–100 mm
Grinding Wheel Spindle Speed: 1,685 rpm
Grinding Wheel Spindle Motor: 7.5 kW
Wheelhead Type: Fixed, Non-Swivelling
X-Axis Total Travel: 310 mm
X-Axis Rapid Traverse Distance: 40 mm
X-Axis Rapid Traverse Speed: 0–10,000 mm/min
X-Axis Servo Motor: 1.2 kW
Z-Axis Total Travel: 860 mm
Z-Axis Maximum Feed Rate: 15,000 mm/min
Z-Axis Servo Motor: 1.2 kW
Minimum Programmable Increment: 0.0001 mm
Workhead Spindle Type: Fixed Dead Spindle
Workhead Spindle Speed: 15–600 rpm
Workhead Centre Taper: MT4
Workhead Motor: 1.5 kW
Tailstock Quill Travel: 50 mm
Tailstock Centre Taper: MT4
Tailstock Fine Adjustment: ±0.05 mm
Electrical Supply: 200 V, 3 Phase, 50 Hz
Rated Electrical Capacity: 21 kVA
Machine Weight: 4500kg Approx
Dimensions: 3600 x 2200 x 2300mm Approx
Additional Equipment & Features

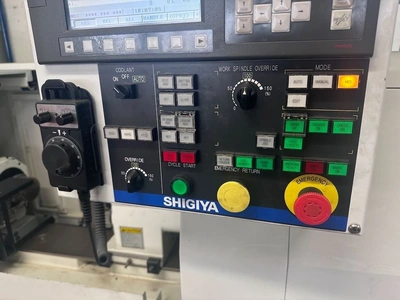

CNC Control: Fanuc Series 0i-TD

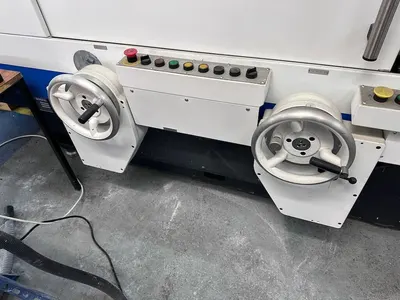

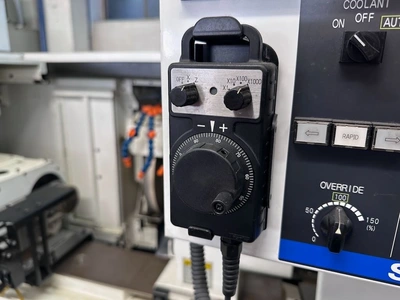

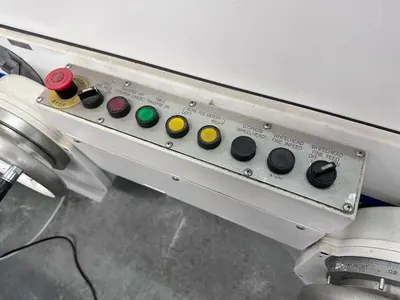

Manual/CNC Operation: Shigiya MeisterHandwheel System

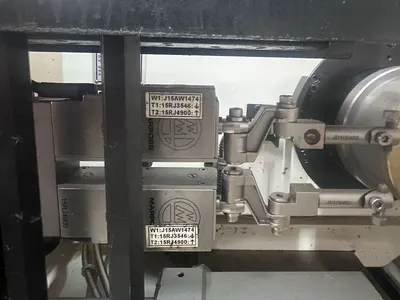

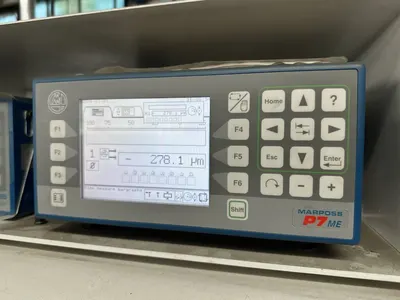

Digital Gauging System: Marposs P7ME

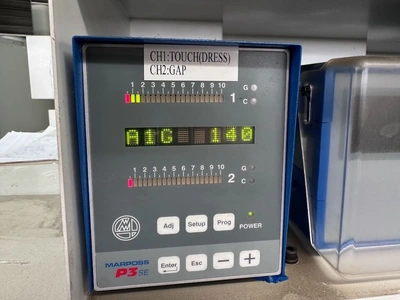

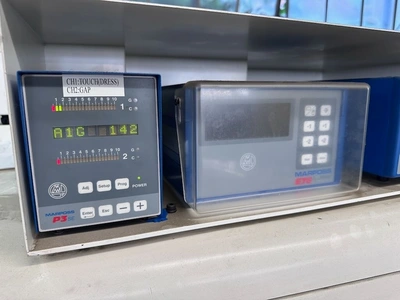

Touch/Dress and Gap Detection: Marposs P3SE
Wheel Balancing Controller: Marposs E78
Grinding Wheel Dressing: Dressing Arrangement Fitted

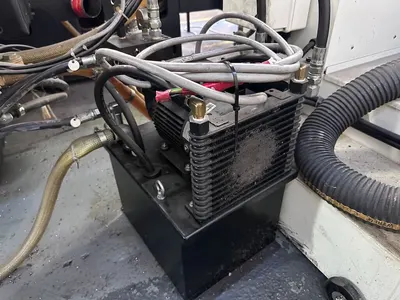

Oil Cooling Unit: Daikin AKZ149-C

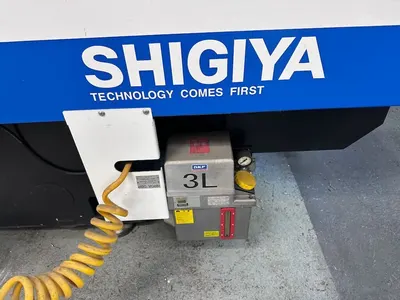

Automatic Lubrication: SKF System

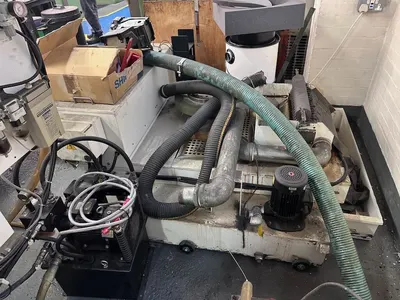

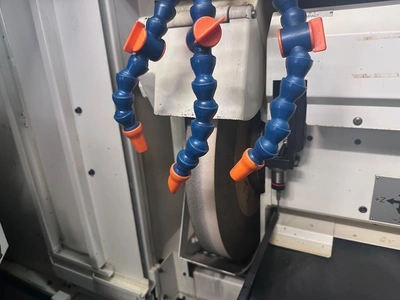

Coolant System: Fitted

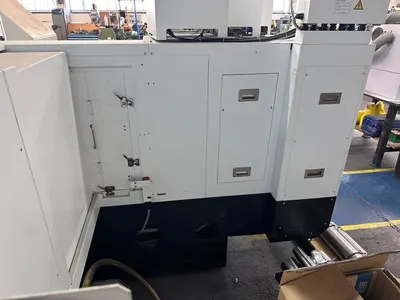

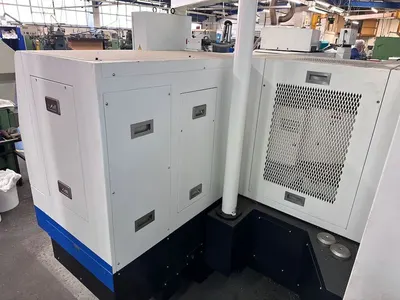

Machine Enclosure: Fully Enclosed

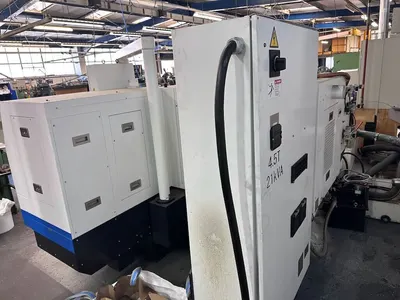

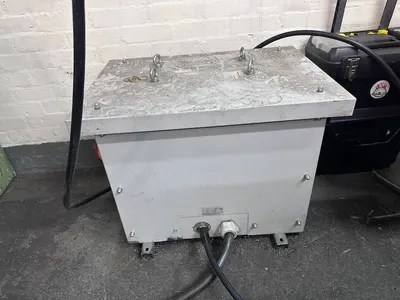

Electrical Transformer: Separate Unit
Documentation: Original Operating Manuals and Documentation
Condition: Used, visually in good condition; full grinding accuracy to be confirmed.
2016 Shigiya GPH-30B/75 CNC Precision Cylindrical Grinder, manufactured in Japan and fitted with Fanuc Series 0i-TD CNC control.
Featuring an uprated 7.5 kW grinding spindle with 508 mm grinding wheel capacity, 750 mm between centres and 300 mm swing over table.
Equipped with Shigiya MeisterHandwheel manual/CNC operation and an extensive Marposs gauging package, including P7ME digital gauging, P3SE touch/dress and gap detection, and E78 wheel balancing control.
Complete with grinding wheel dressing facilities, Daikin oil cooling unit, SKF automatic lubrication, coolant system, enclosed working area, and original manuals.
A well-equipped precision cylindrical grinder suitable for toolroom, subcontract, and production grinding applications.
Imperial
| Swing | 11.811" |
| Centers | 29.528" |
| Plain or Angle Head | Plain |
| Grinding Wheel Dia. | 20" |
| Wheel Power | 10.1 hp |
| Wheel Speed | 1,685 RPM |
| Gauging | Yes |
| Dresser | Yes |
| Control | CNC (Fanuc Series 0i-TD) |
| Dimensions | 3600 x 2200 x 2300mm |
| Weight | 4500kg |
Shigiya GPH-30B/75 CNC Cylindrical Grinder with Fanuc Control and Marposs Gauging
Technical Specifications
Manufacturer: Shigiya Machinery Works Ltd, Japan
Model: GPH-30B/75
Year: January 2016
Serial Number: 2150345
CNC Control: Fanuc Series 0i-TD
Machine Type: CNC External Cylindrical Grinder
Swing Over Table: 300 mm
Distance Between Centres: 750 mm
Maximum Workpiece Weight: 150 kg
Grinding Wheel Diameter: 508 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Width: 30–100 mm
Grinding Wheel Spindle Speed: 1,685 rpm
Grinding Wheel Spindle Motor: 7.5 kW
Wheelhead Type: Fixed, Non-Swivelling
X-Axis Total Travel: 310 mm
X-Axis Rapid Traverse Distance: 40 mm
X-Axis Rapid Traverse Speed: 0–10,000 mm/min
X-Axis Servo Motor: 1.2 kW
Z-Axis Total Travel: 860 mm
Z-Axis Maximum Feed Rate: 15,000 mm/min
Z-Axis Servo Motor: 1.2 kW
Minimum Programmable Increment: 0.0001 mm
Workhead Spindle Type: Fixed Dead Spindle
Workhead Spindle Speed: 15–600 rpm
Workhead Centre Taper: MT4
Workhead Motor: 1.5 kW
Tailstock Quill Travel: 50 mm
Tailstock Centre Taper: MT4
Tailstock Fine Adjustment: ±0.05 mm
Electrical Supply: 200 V, 3 Phase, 50 Hz
Rated Electrical Capacity: 21 kVA
Machine Weight: 4500kg Approx
Dimensions: 3600 x 2200 x 2300mm Approx
Additional Equipment & Features
CNC Control: Fanuc Series 0i-TD
Manual/CNC Operation: Shigiya MeisterHandwheel System
Digital Gauging System: Marposs P7ME
Touch/Dress and Gap Detection: Marposs P3SE
Wheel Balancing Controller: Marposs E78
Grinding Wheel Dressing: Dressing Arrangement Fitted
Oil Cooling Unit: Daikin AKZ149-C
Automatic Lubrication: SKF System
Coolant System: Fitted
Machine Enclosure: Fully Enclosed
Electrical Transformer: Separate Unit
Documentation: Original Operating Manuals and Documentation
Condition: Used, visually in good condition; full grinding accuracy to be confirmed.
