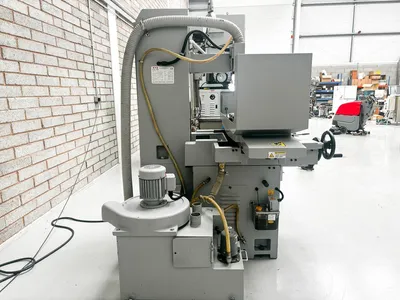

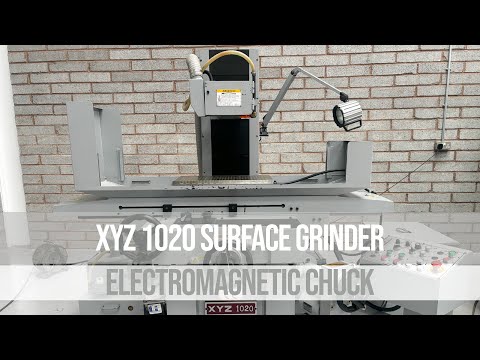

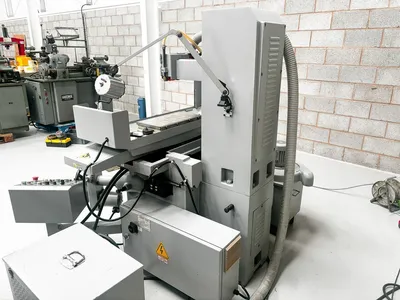

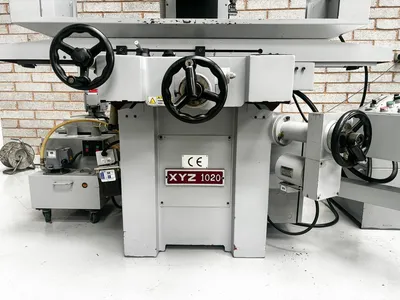

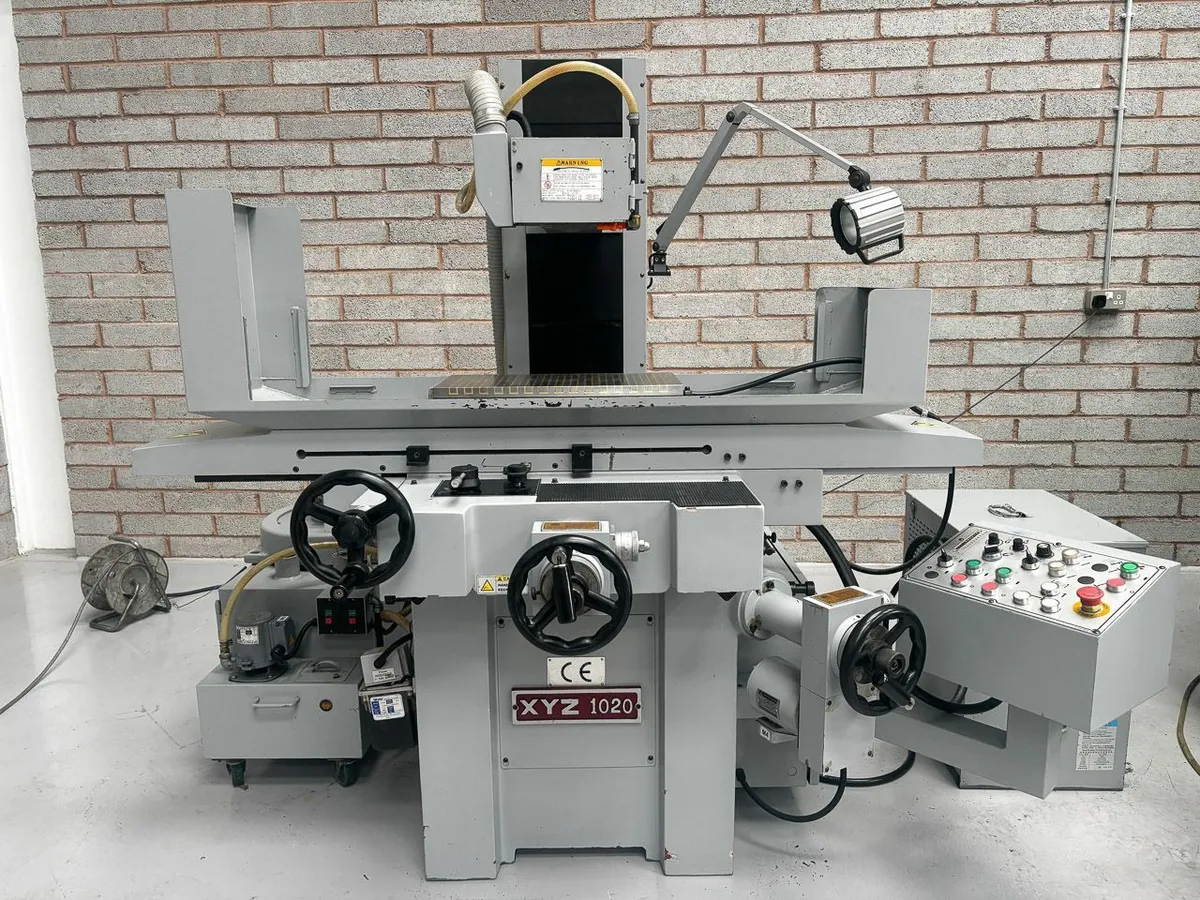

Used 2012 XYZ 1020 | Reciprocating Surface Grinders
Have one to sell?
£9,200.00 GBP
ConditionUsed
1 available
Free Loading To Suitable Transport.
In great condition, this machine is available to purchase immediately. All viewings are by appointment only.
Machine can be inspected under Power.
Comes with:

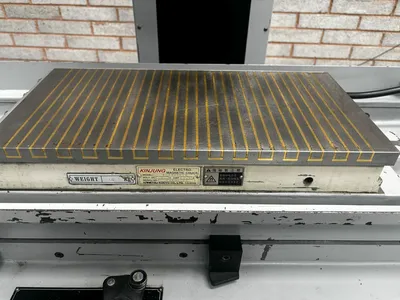

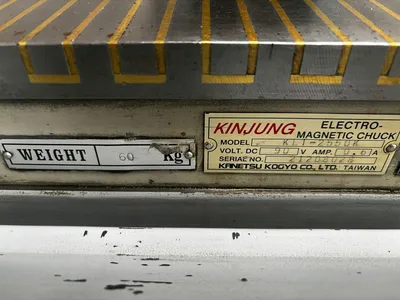

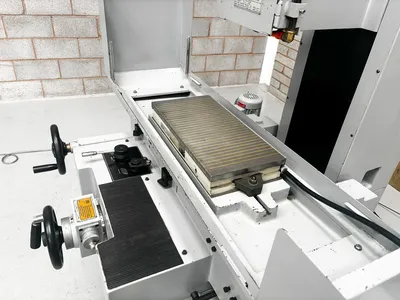

Electro Magnetic Chuck with Demaginitiser

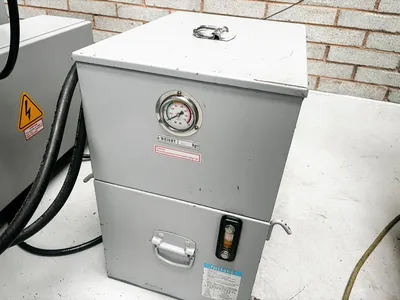

Separate Hydraulic Tank

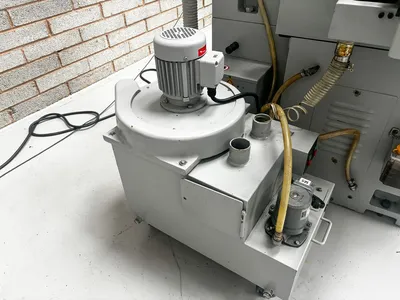

Separate air and coolant tank

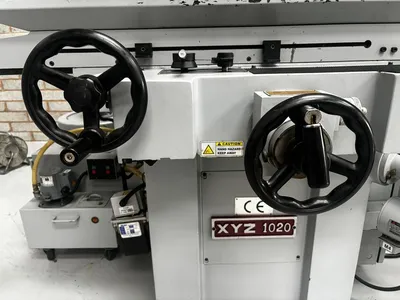

Incremental Cross Feed

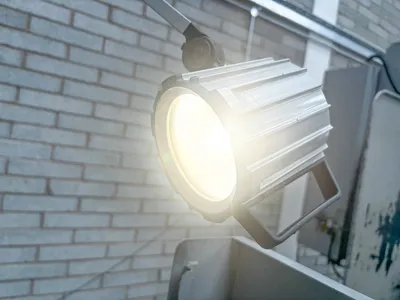

Halogen Work Lamp

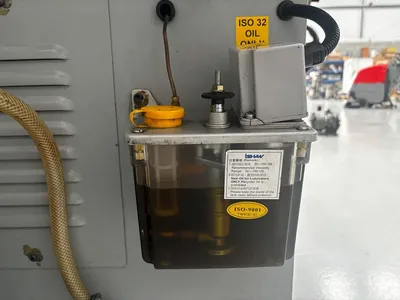

Lubrication System
Coolant.
Dust Extraction.
Worklight
Includes: 2x Wheel Arbors

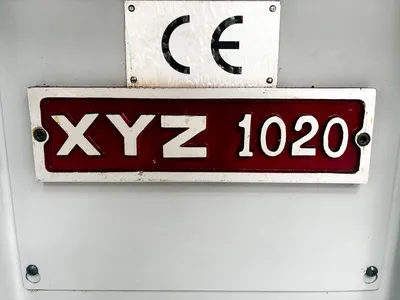

MODEL: XYZ 1020
S/N: 1224055
Manufacturer: XYZ Machine Tools Ltd
Model: XYZ 1020
Weight: 1550KG
Magnetic Chuck Size: 250 x 500mm
Max Grinding Length: 500mm
Max Grinding Width: 250mm
Max Table Surface to Spindle Centre: 500mm
Longitudinal Travel: 550mm
Longitudinal Feeds: 5 - 25M/min
Cross Travel: 270mm
Cross Travel- Auto Increment: 0.15 - 15mm
Cross Feed Travel per Revolution: 4mm

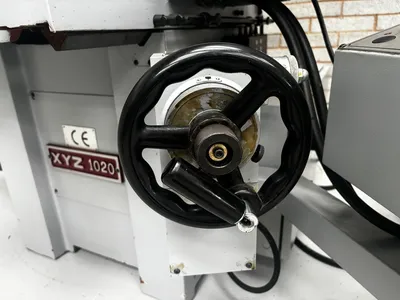

Cross Feed Handle Graduation: 0.02mm
Down Feed Travel per Revolution: 2mm
Down Feed Handle Graduation: 0.01mm
Spindle: 1.5 kW
Max Spindle Speed: 2900 RPM
Hydraulic motor power: 1hp
Grinding Wheel Diameter: 180mm
Grinding Wheel Width: 12cm (19cm Max)
Grinding Wheel Bore: 31.75mm
Voltage: 415V
Power Requirements: 20Amp - 3 Phase Supply
Floor Plan: 225cm x 145cm x 180cm
Year: 2012
Serial Number: 1224055
