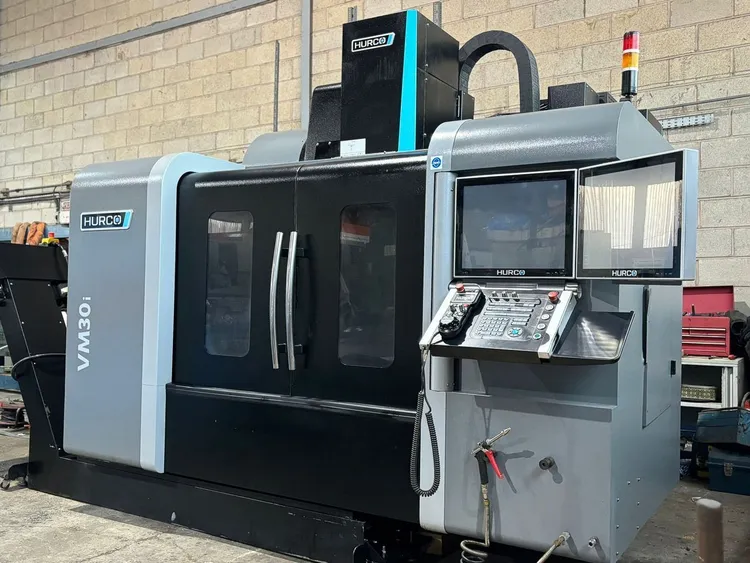

2015 HURCO VM30i With 4th Axis and Tooling Package

2015 HURCO VM30i With 4th Axis and Tooling Package

Have one to sell?
01905 384910
info@Charterauctions.co.uk
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
VM30I
Year:
2015
Stock #:
31
Status:
For Sale

Description

HURCO VM30I used vertical machining center. Ideal for precise and versatile machining applications. Well-maintained, offering advanced capabilities for efficient production. Suitable for various industrial needs.

X50"1,270 mm
Y20"508 mm
Z20"508 mm
Power20.1 hp15 kW
RPM12,000 RPM12,000 RPM
# ATC2424
TaperCAT/BT 40CAT/BT 40
Table-W52"1,320.8 mm
Table-L20"508 mm
# Axis44

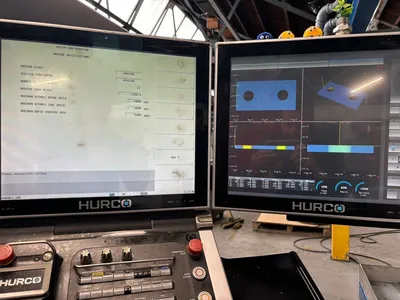

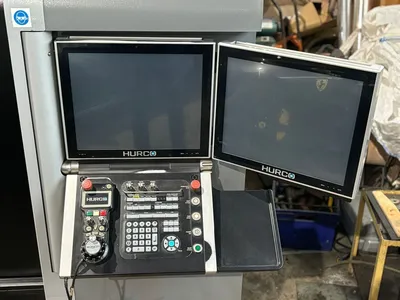

ControlCNCCNC
Dimensions4086 mm X 3312 mm x 2543 mm4086 mm X 3312 mm x 2543 mm
Weight4320kg4320kg

X axis Travel:
1,270mm

Y axis Travel:
508mm

Z axis Travel:
508mm

T-Slot Size:
5 x 18mm

Max weight on table:
1,800kg

Table surface area:
1321 x 508 mm

Spindle nose to table:
102mm

Max Spindle Speed:
12,000 RPM

Spindle Power:
15 kW

Tool Type:
CAT/BT 40

Number of tools:
24

Max tool diameter:
80mm

Max tool length:
250mm

Max tool weight:
7 kg

Rapid traverse:
28 m/min

Footprint:
4,086 mm X 3,312 mm x 2,543 mm (L x W x H)

Weight:
4,320kg

Year:
2015

All machine specifications are provided in good faith but are subject to change without notice. Buyers are advised to verify details independently. Charter Auctions does not accept liability for any inaccuracies or omissions.

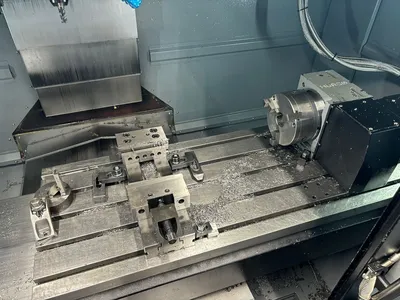

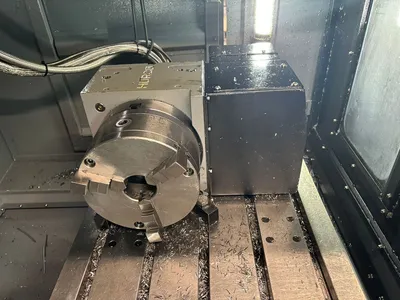

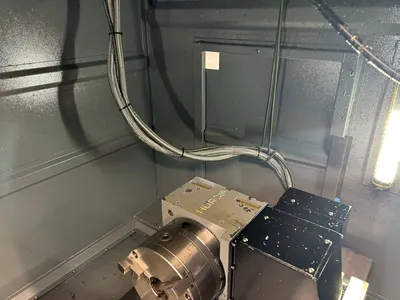

4th Axis
Tooling Package
