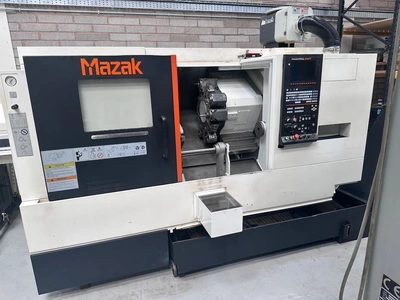

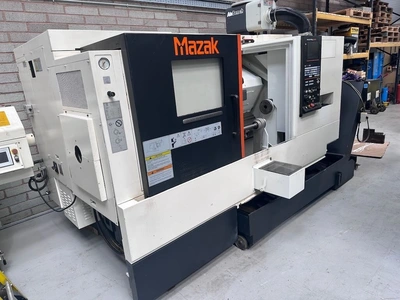

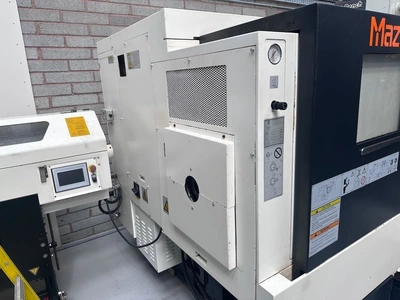

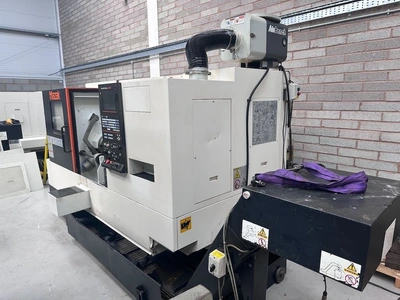

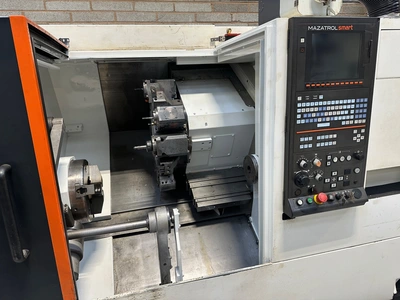

MAZAK Quick Turn Smart 350M with Hydrafeed MSV80 Barfeed and Tooling Package
Have one to sell?
ConditionUsed
1 available
MAZAK Quick Turn Smart 350M CNC Lathe, 2014 model. Ideal for precision machining, known for reliability and efficiency. A solid choice for enhancing your production capabilities with quality technology.
MAZAK QUICK TURN SMART 350M – 2014 – Standard Bed
General
Model: Quick Turn Smart 350M
Year: 2014
Machine Type: CNC turning centre with milling capability

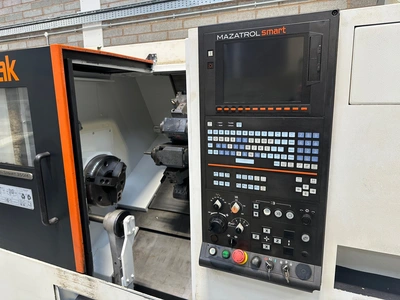

Control: MAZATROL Smart control (factory standard for the Smart-series machines in this period)
Construction: High-rigidity slant-bed CNC lathe with integrated motor spindle
Capacity (Standard 26" Bed)
Maximum machining diameter: 419 mm (16.5")
Maximum turning length: 605 mm (23.8")
Maximum bar capacity: 102 mm (4")
Maximum swing: 749 mm (29.5")
Main Spindle

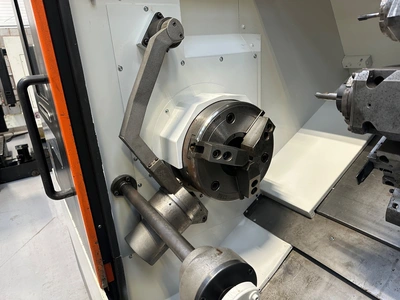

Chuck size: 12" hydraulic chuck
Maximum spindle speed: 3,330 rpm
Spindle motor output: 40 hp (30 kW)
Bar capacity: 102 mm
Turret & Milling Capability

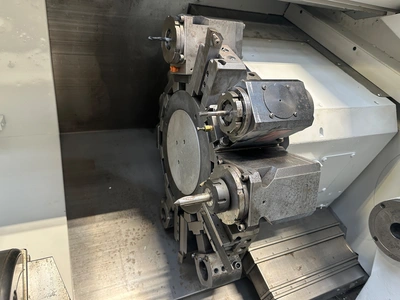

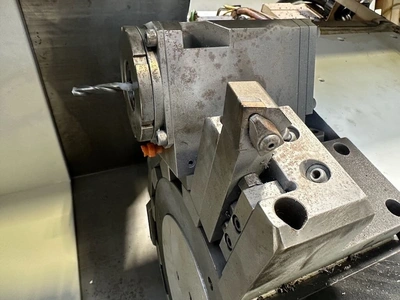

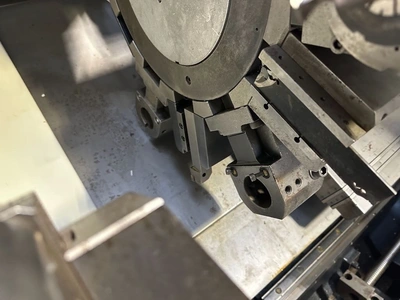

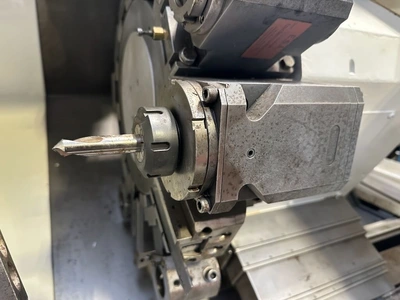

Turret: 12-station drum turret

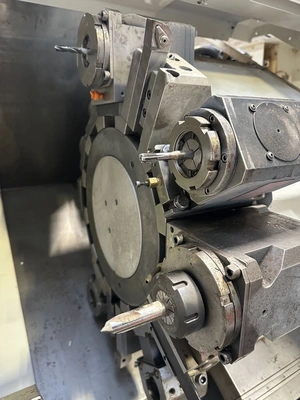

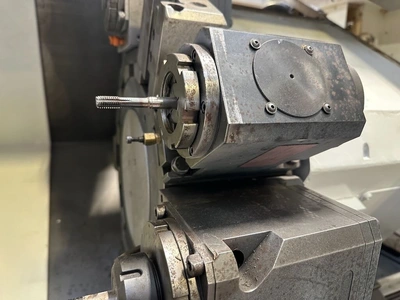

Live tooling speed: up to 6,000 rpm
Live tool motor: 7.5 kW (10 hp)
C-axis: Standard for milling, drilling and tapping operations
Axis Travel
X-axis travel: 257 mm
Z-axis travel (standard bed): 670 mm
Tailstock travel: 648 mm
Machine Features
Integrated motor spindle for improved accuracy and reduced vibration
High-rigidity slant-bed construction

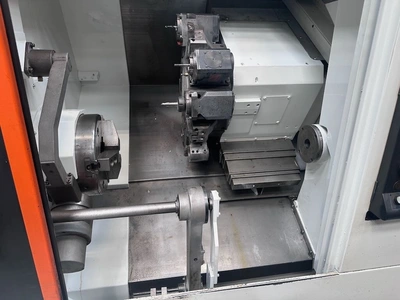

High-speed drum turret with automatic indexing
Designed for turning, milling, drilling and multi-operation machining in a single setup
Machine Options

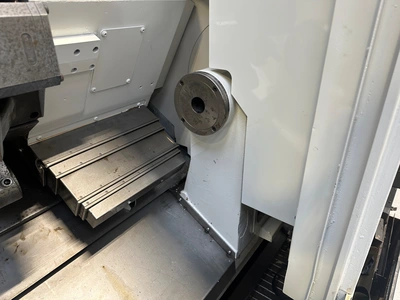

Tailstock
Tool presetter
Parts catcher
Chip conveyor

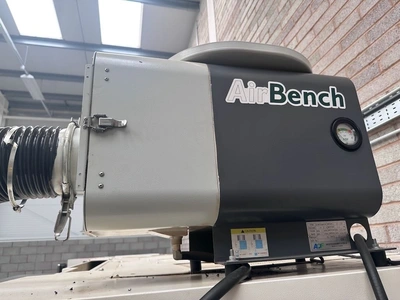

Air Bench Filter System
Includes:

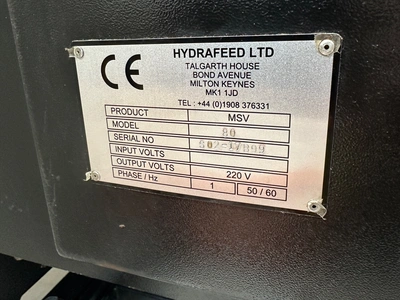

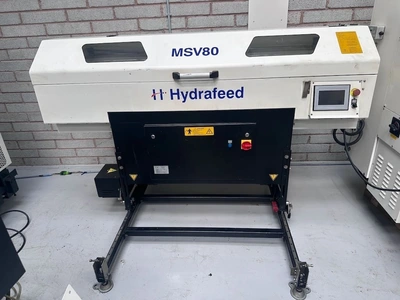

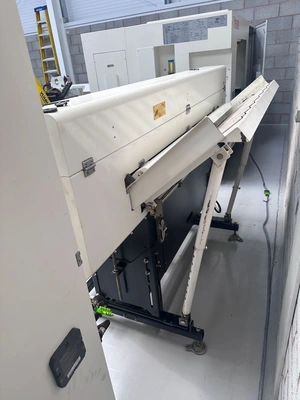

Hydrafeed MSV80 Barfeed

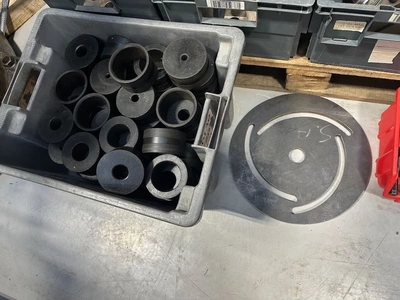

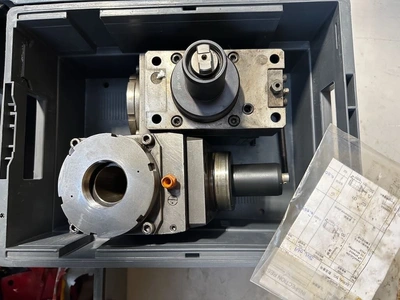

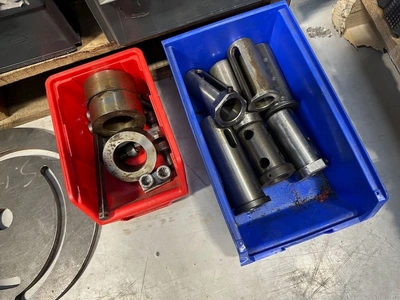

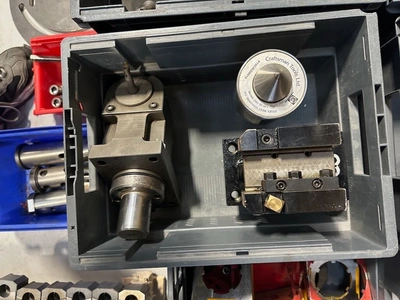

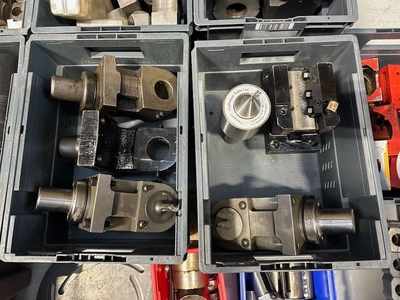

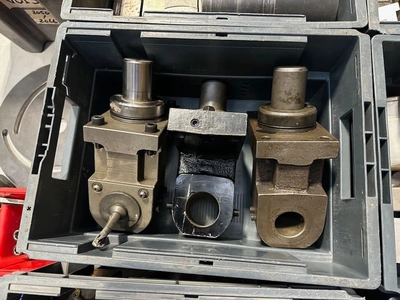

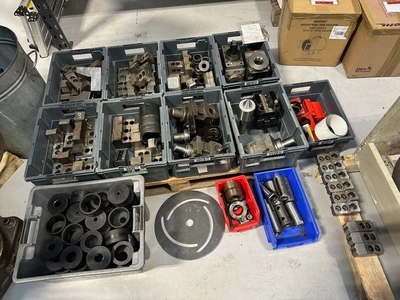

Static and Driven Tooling.

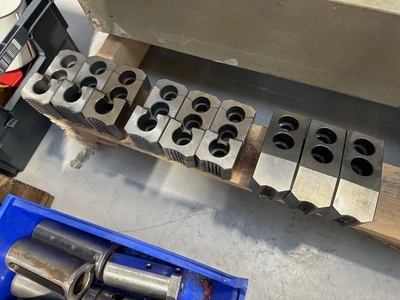

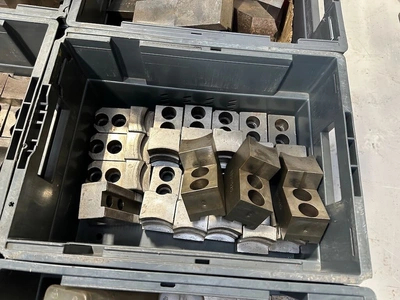

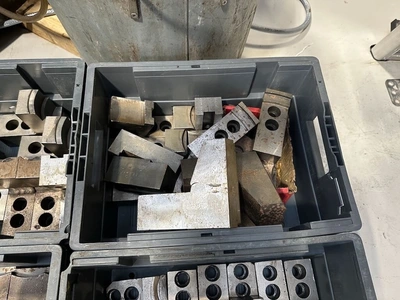

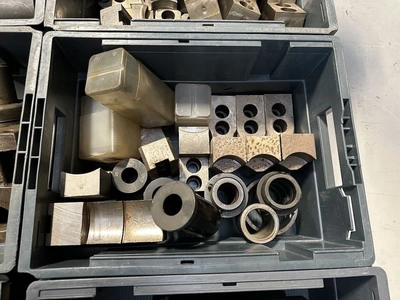

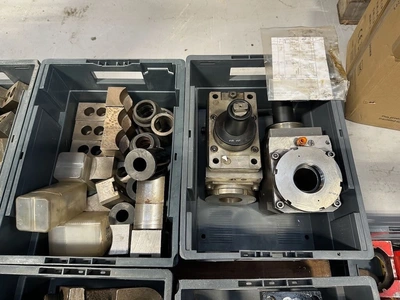

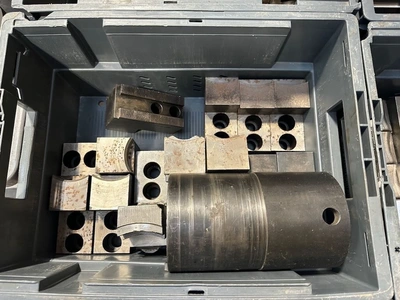

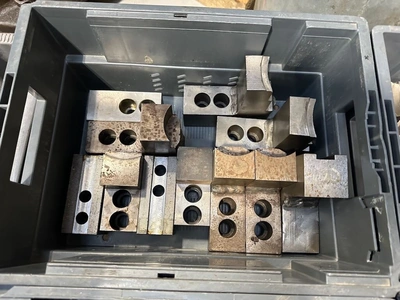

Large Quantity of Hard and Soft Jaws.
Plus other Accessories.
Manuals
MAZAK Quick Turn Smart 350M CNC Lathe, 2014 model. Ideal for precision machining, known for reliability and efficiency. A solid choice for enhancing your production capabilities with quality technology.
Imperial
| Swing | 29.5" |
| Machining Length | 23.8" |
| # Axis | 3 |
| Chuck Size | 12" |
| Bar Capacity | 4" |
| Power | 40 hp |
| Max RPM | 3,330 RPM |
| Turning Dia | 16.5" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | '' |
| Control | CNC (MAZATROL) |
| Weight | 15564.5 lbs |
MAZAK QUICK TURN SMART 350M – 2014 – Standard Bed
General
Model: Quick Turn Smart 350M
Year: 2014
Machine Type: CNC turning centre with milling capability
Control: MAZATROL Smart control (factory standard for the Smart-series machines in this period)
Construction: High-rigidity slant-bed CNC lathe with integrated motor spindle
Capacity (Standard 26" Bed)
Maximum machining diameter: 419 mm (16.5")
Maximum turning length: 605 mm (23.8")
Maximum bar capacity: 102 mm (4")
Maximum swing: 749 mm (29.5")
Main Spindle
Chuck size: 12" hydraulic chuck
Maximum spindle speed: 3,330 rpm
Spindle motor output: 40 hp (30 kW)
Bar capacity: 102 mm
Turret & Milling Capability
Turret: 12-station drum turret
Live tooling speed: up to 6,000 rpm
Live tool motor: 7.5 kW (10 hp)
C-axis: Standard for milling, drilling and tapping operations
Axis Travel
X-axis travel: 257 mm
Z-axis travel (standard bed): 670 mm
Tailstock travel: 648 mm
Machine Features
Integrated motor spindle for improved accuracy and reduced vibration
High-rigidity slant-bed construction
High-speed drum turret with automatic indexing
Designed for turning, milling, drilling and multi-operation machining in a single setup
Machine Options
Tailstock
Tool presetter
Parts catcher
Chip conveyor
Air Bench Filter System
Includes:
Hydrafeed MSV80 Barfeed
Static and Driven Tooling.
Large Quantity of Hard and Soft Jaws.
Plus other Accessories.
Manuals
