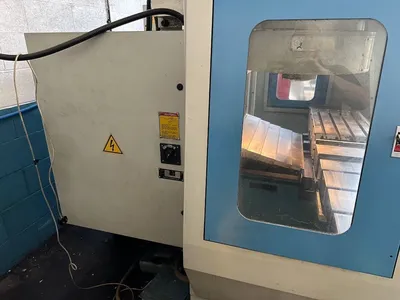

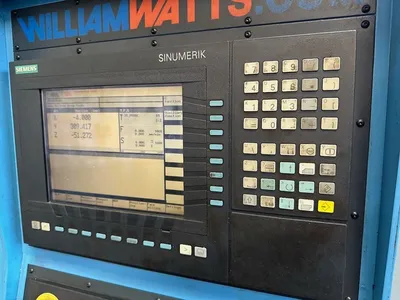

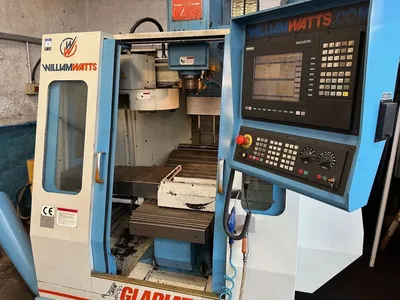

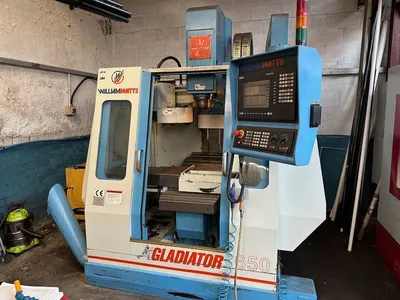

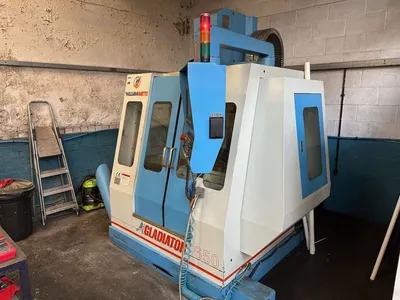

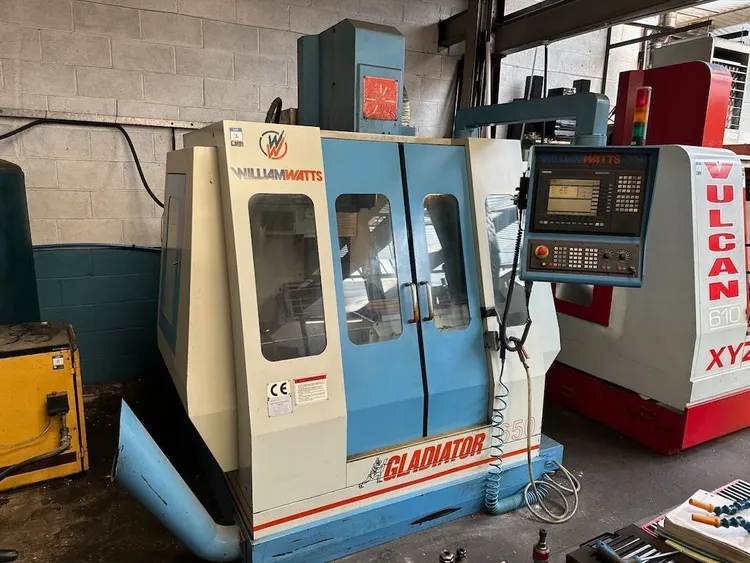

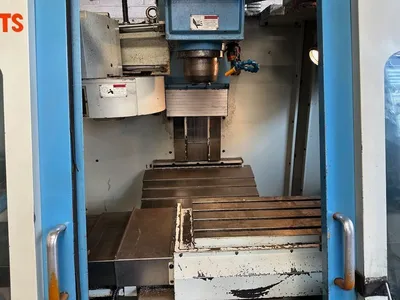

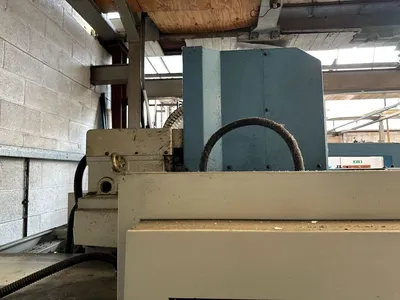

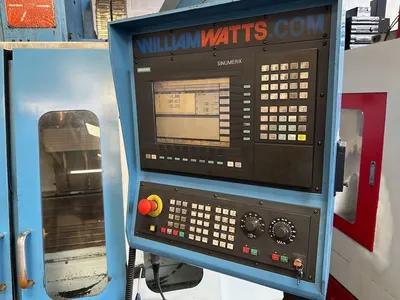

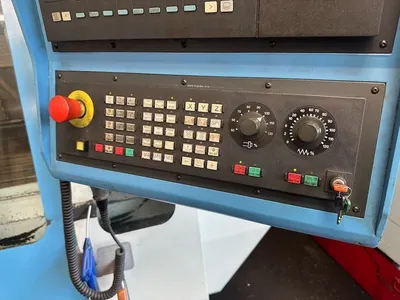

William Watts Gladiator 650 Vertical Machining Centre with Tooling Package

Model: VMC-650

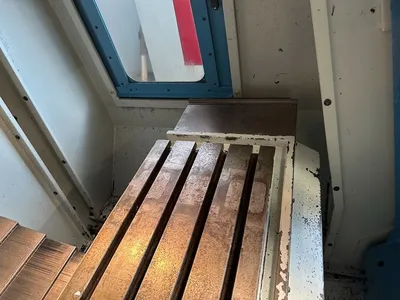

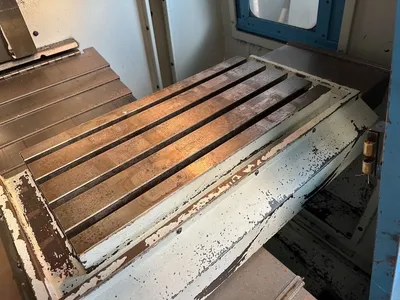

Work Table Size: 385mm x 850mm
T-Slots: 18mm x 4 x 80mm / Precisely Ground
Max Table Load: 350kgs
X/Y/Z Axis Travel: 650mm x 460mm x 500mm
Positioning Accuracy: 0.003mm / 300mm
Repeatability: ±0.003mm
Spindle Nose to Table: 82 – 582mm
Spindle Centre to Column: 480mm

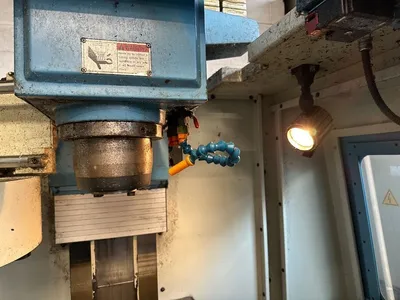

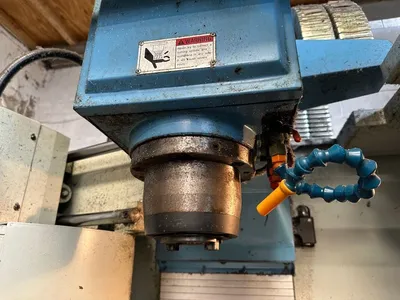

Spindle Taper: BT#40 (CAT#40 / DIN#40, 69871, 69872)
Spindle Speed Range: 60 – 8000rpm
Spindle Type: AC Spindle Motor, Infinitely Variable
Tool Holder: DIN 69871 Type B compatible (Optional)
Spindle Diameter: Ø65mm
Feed Rate: 1 – 5000mm/min
Rapid Traverse Rate: X/Y = 12m/min, Z = 10m/min
Coolant System: Nil

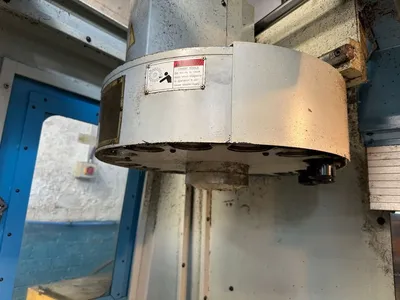

ATC Type: GENOVA Type 16 ATC (Optional Arm Type 24 ATC)
Max Tool Diameter: Ø80mm
Tool Change Type: Bi-directional random, shortest path
Max Tool Weight: 7kgs / pc
Spindle Motor Power: 3.7 / 5.5kW – 9 / 12kW (Depends on CNC/AC Servo)
Feed Motor Power: 0.5 – 3.5kW (Depends on CNC/AC Servo)
Coolant Motor: 1/4HP

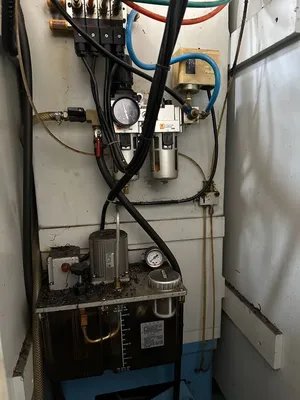

Lubrication Motor: 1/4HP
Machine Dimensions (SEMI): 3140mm x 2160mm x 2500mm
Machine Dimensions (FULL): 3160mm x 2730mm x 2500mm
Net Weight: 3100kgs
