DAEWOO PUMA MX2000ST with 8 controlled axes plus an A-axis programmable tailstock
Have one to sell?
ConditionUsed
1 available
£42,000.00 GBP

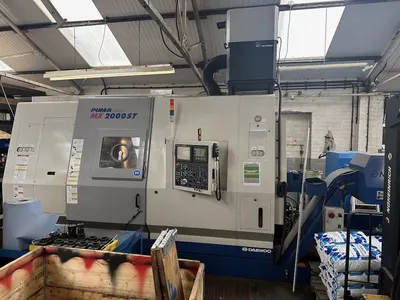

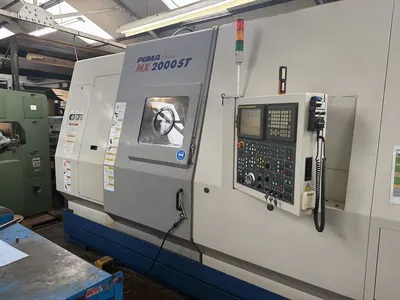

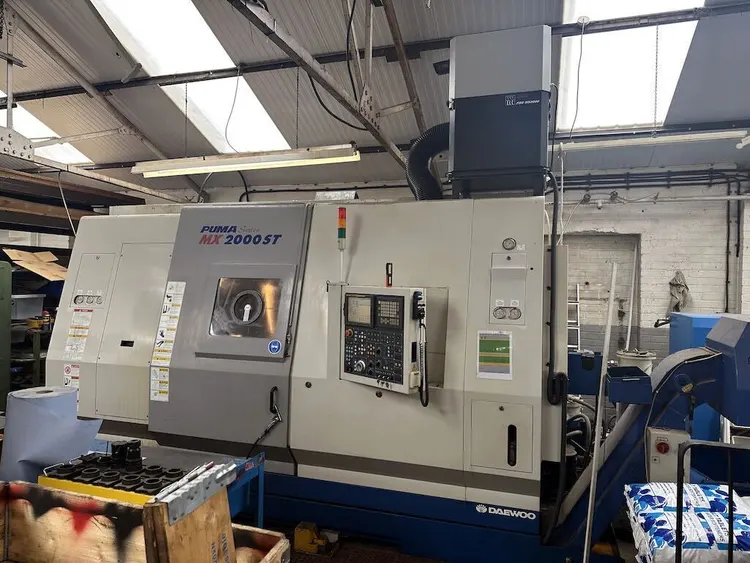

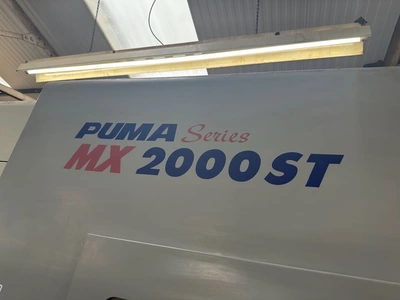

2005 Daewoo Puma MX2000ST — Multi-Axis Mill/Turn Centre

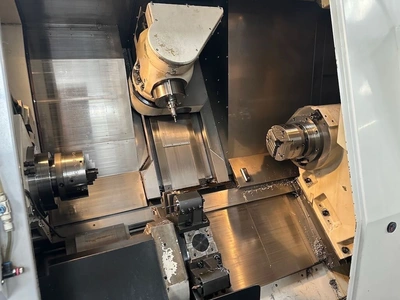

The Puma MX2000ST is a powerful multi-tasking CNC centre designed to combine turning and milling operations in a single setup. Equipped with twin spindles and a lower turret, it allows simultaneous machining for improved productivity.
Key features include:

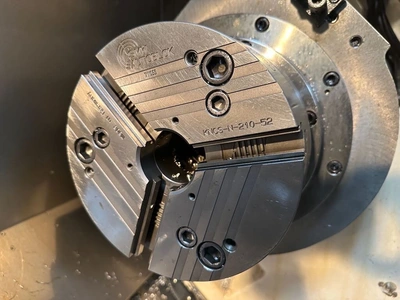

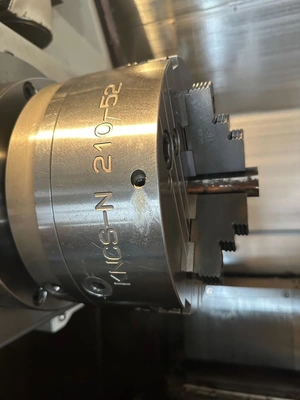

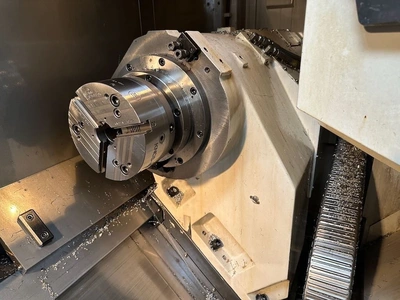

Twin spindles with C-axis control
Maximum turning diameter approx. 550 mm, turning length approx. 1,020 mm
9 controlled axes for complex machining
Live tooling with automatic tool changer
Fanuc CNC control system
Rigid build for accurate, heavy-duty machining
A versatile solution for high-precision work, ideal for reducing setup times and handling complex components in one machine. Programmable tailstock (A-axis)
• Hi-Pressure Through-spindle coolant • Parts catcher and conveyor • LNS FOX2000 Filtermist unit • Tooling package • Full documentation and manuals

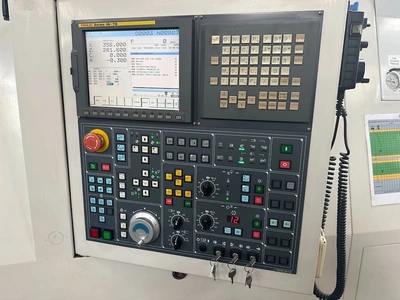

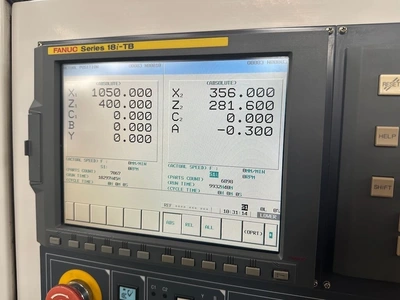

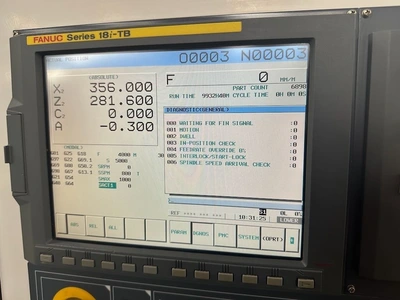

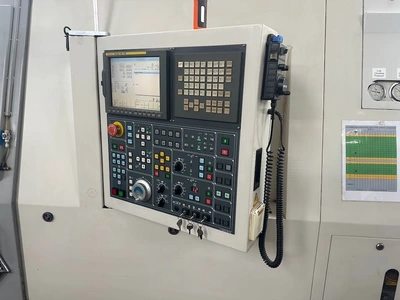

Fanuc 18i-TB CNC control
Axis Configuration
8-axis plus A-axis programmable tailstock
X1/Z1 travel (main spindle): approx. 555 mm × 1,095 mm
X2/Z2 travel (sub spindle / lower turret): approx. 185 mm × 1,095 mm
Y-axis travel: ±80 mm
B-axis indexing: ±120°
C-axes (main & sub spindle): 360° indexing, 0.001° resolution
A-axis: programmable tailstock with approx. 1,065 mm stroke
Spindle
Main & sub spindle speed: up to 5,000 rpm
Spindle motor power: approx. 22 kW (30 HP) vector drive
Spindle bore: 65 mm
Bar capacity: 65 mm
Milling / Turret System

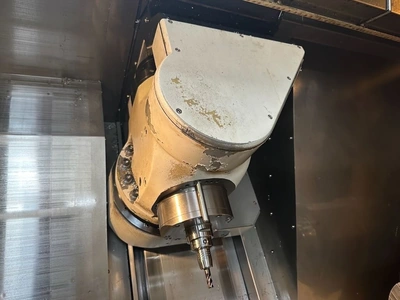

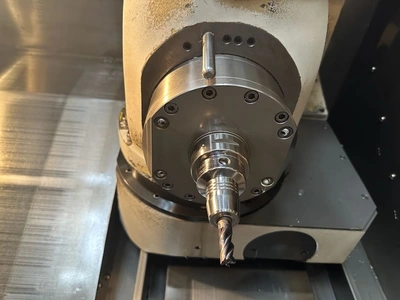

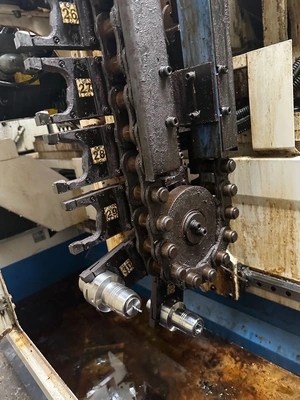

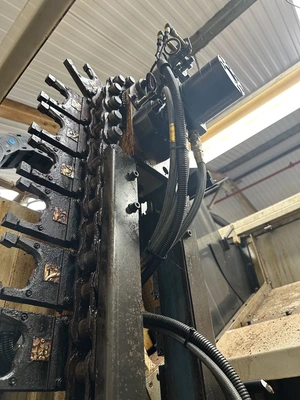

Upper milling head with 40-station automatic tool changer
Milling spindle speed: up to 10,000 rpm

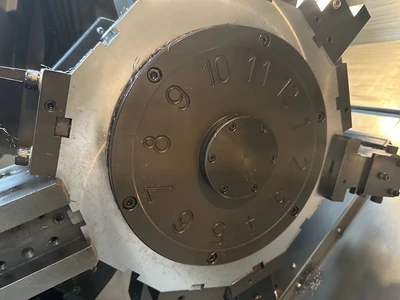

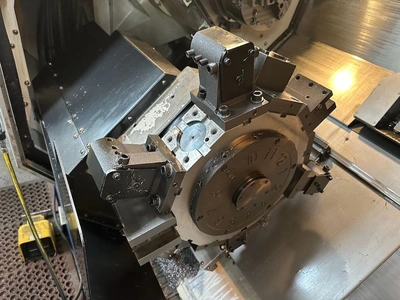

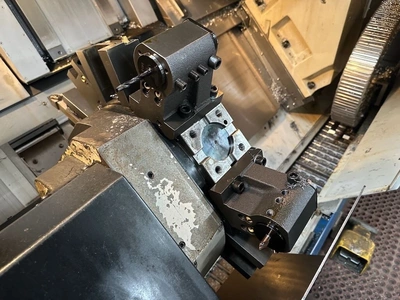

Lower turret: 12 stations, live tooling capable
Tool change time: approx. 1.5 sec
Max tool length: 300 mm
Max tool diameter: 120 mm (adjacent-free)
Capacity
Max turning diameter: 550 mm
Max turning length: 1,020 mm
Swing over bed: approx. 750 mm
Dimensions / Weight
Machine footprint: approx. 4,520 mm × 2,495 mm
Height: approx. 2,600 mm
Machine weight: approx. 12,500 kg
Utilities
Power supply: 380–440V / 3-phase / 50 Hz
Power consumption: approx. 81 kVA
Equipped with a chip conveyor, coolant system, tool presetter, and swarf handling
Additional Features
Programmable tailstock (A-axis)
Hi Pressure Through-spindle coolant
Parts catcher and conveyor

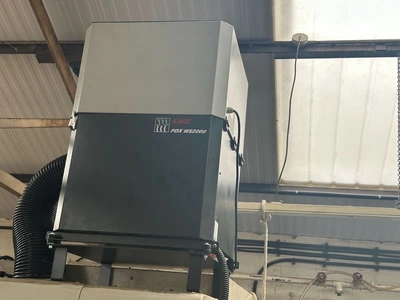

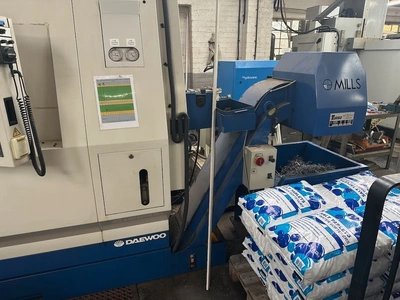

LNS FOX2000 Filtermist unit
Tooling package
Full documentation and manuals
| Coolant |
| Filtermist Unit |
| Swarf Conveyor |
| Tool Presetter |
| Tooling Package |
