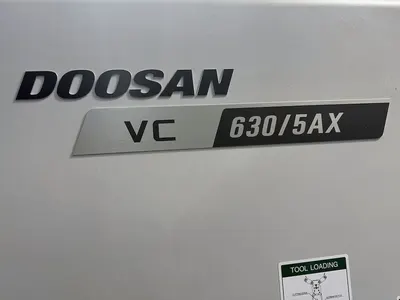

DOOSAN VC 630/5AX - Immaculate Machine with very low hours

DOOSAN VC 630/5AX - Immaculate Machine with very low hours

Have one to sell?
01905 384910
info@Charterauctions.co.uk
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
DOOSAN
Model:
VC 630/5AX
Year:
2019
Stock #:
78
Status:
For Sale
Country:
United Kingdom

Description

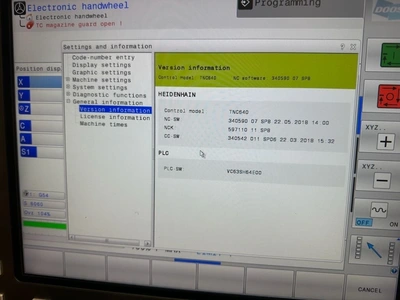

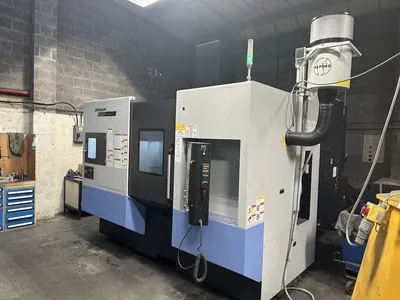

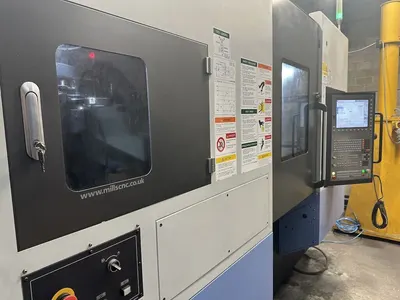

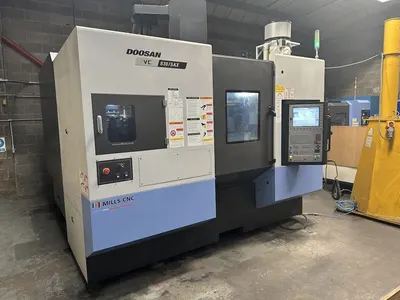

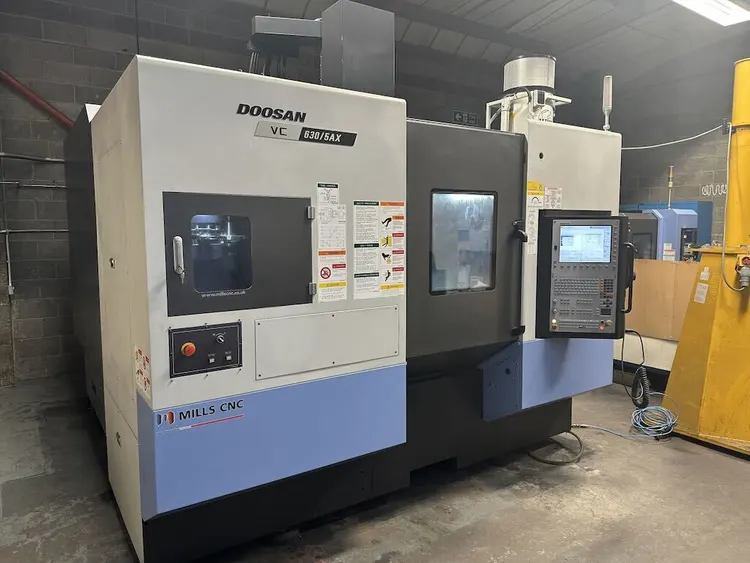

Excellent condition with only 825 Spindle hours, Doosan 5 Axis Vertical Machining Centre, with Heidenhain TNC640 Control, 60 ATC, Filtermist FX7002, Renishaw RMP600 Spindle and Touch Probe, LNS Swarf Conveyor, and Chip Hopper. Cut 99% Aluminium 1% Steel.

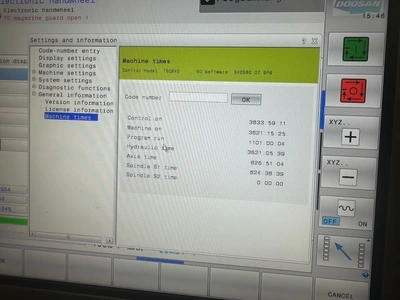

Machine on only 3621 hours

X25.59"649.99 mm
Y30.12"765.05 mm
Z20.47"519.94 mm
# Axis55
Power30 kW40.2 hp

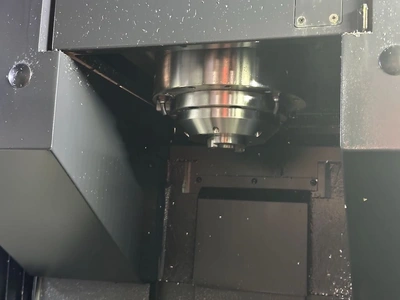

RPM12,000 RPM12,000 RPM

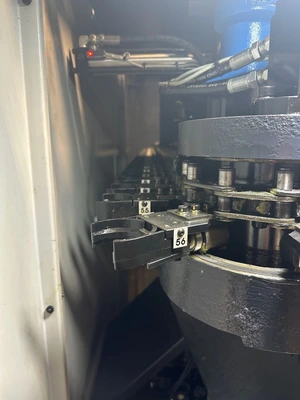

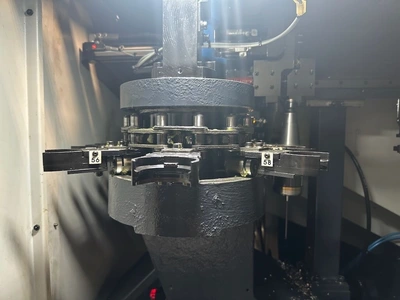

# ATC6060
TaperBT-40BT-40

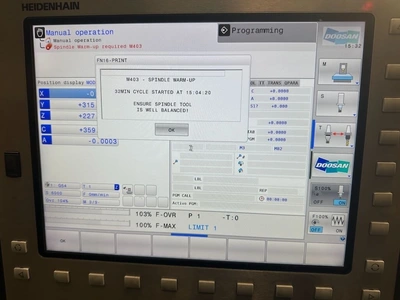

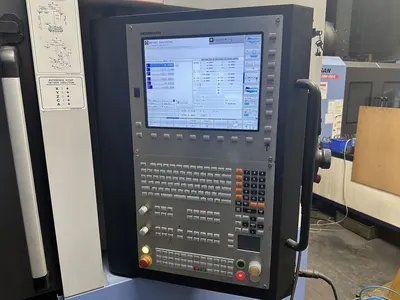

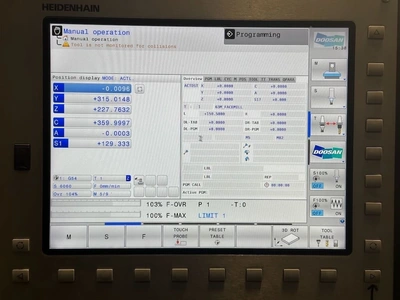

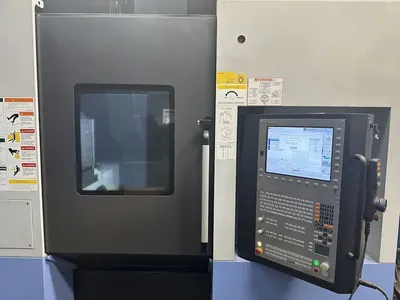

ControlCNC (Heidenhain TNC640)CNC (Heidenhain TNC640)
Dimensions141.7 x 141.7141.7 x 141.7
Weight12500 kg12500 kg

Travels
• X axis travel: 650 mm
•
Y axis travel: 765 mm
•
Z axis travel: 520 mm

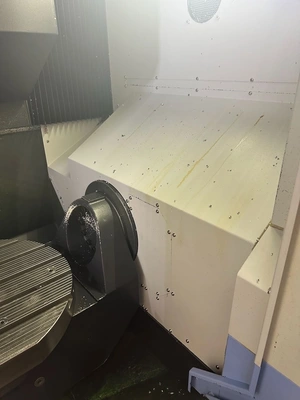

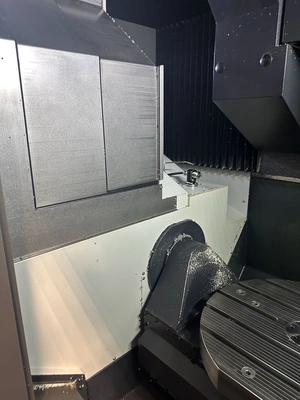

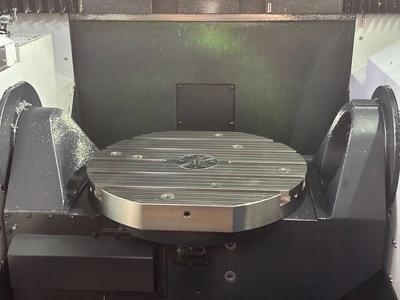

Rotary Table
• Table diameter: 630 mm

• A axis travel: +30 to minus 120 degrees

• C axis travel: 360 degrees continuous

• Maximum table load: 500 kg

• Maximum component diameter: approx 730 mm
Rotaries: A axis +30° to −120°, C axis 360°.
Spindle to table: 210 to 730 mm
Rapid feeds: X 40 m/min, Y 40 m/min, Z 36 m/min

All machine specifications are provided in good faith but are subject to change without notice. Buyers are advised to verify details independently. Charter Auctions does not accept liability for any inaccuracies or omissions.

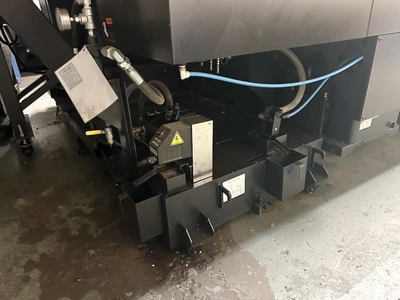

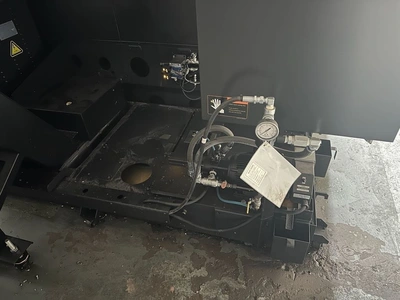

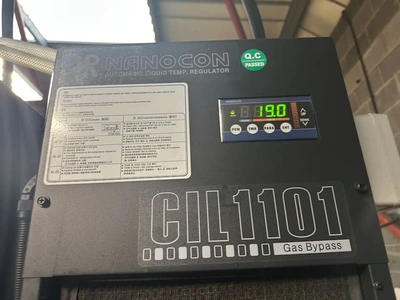

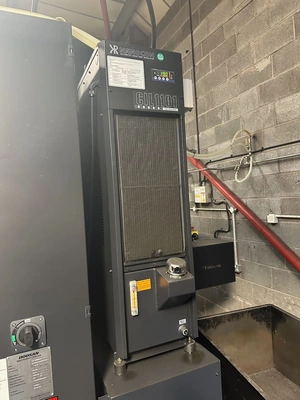

Chiller Unit

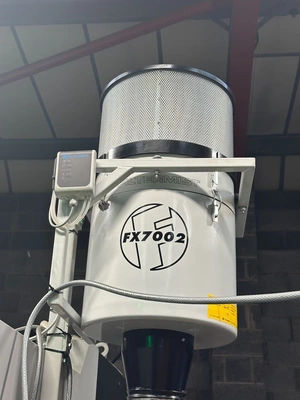

Filtermist Unit

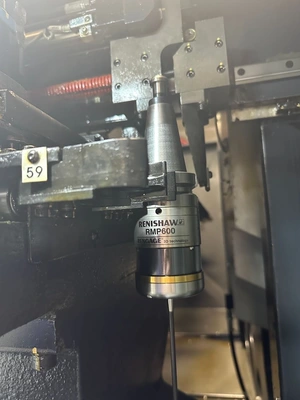

Renishaw Probing

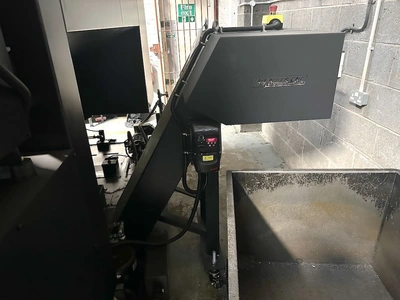

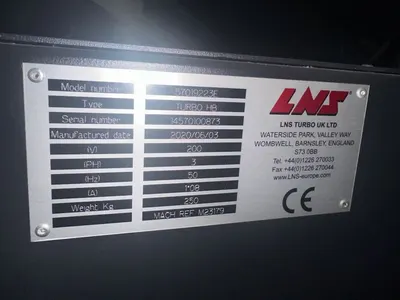

Swarf Conveyor

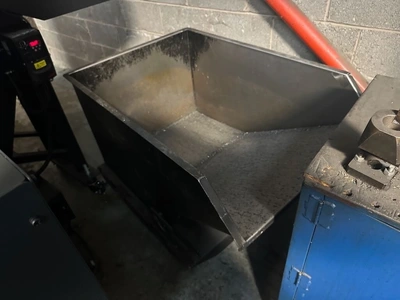

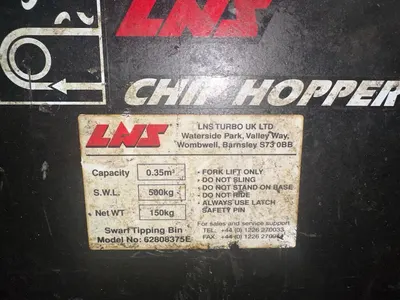

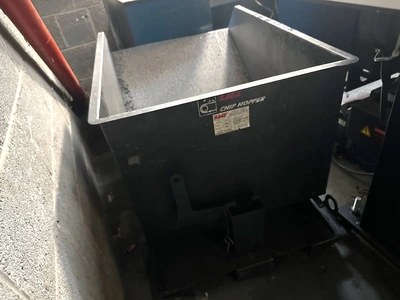

Swarf Skip
