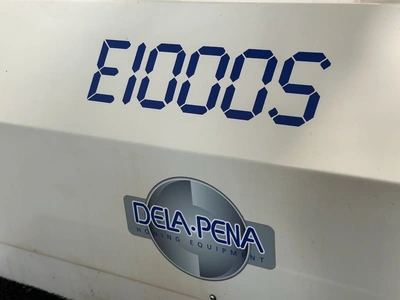

DELAPENA E1000S, Acessories Package and in excellent condtion

Description

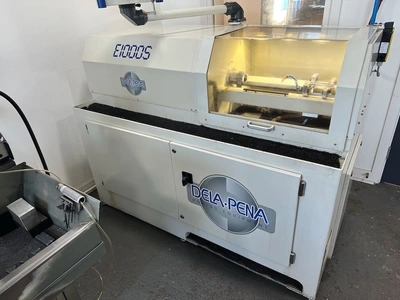

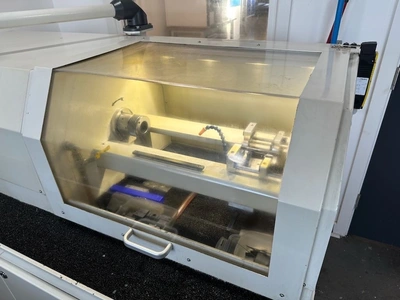

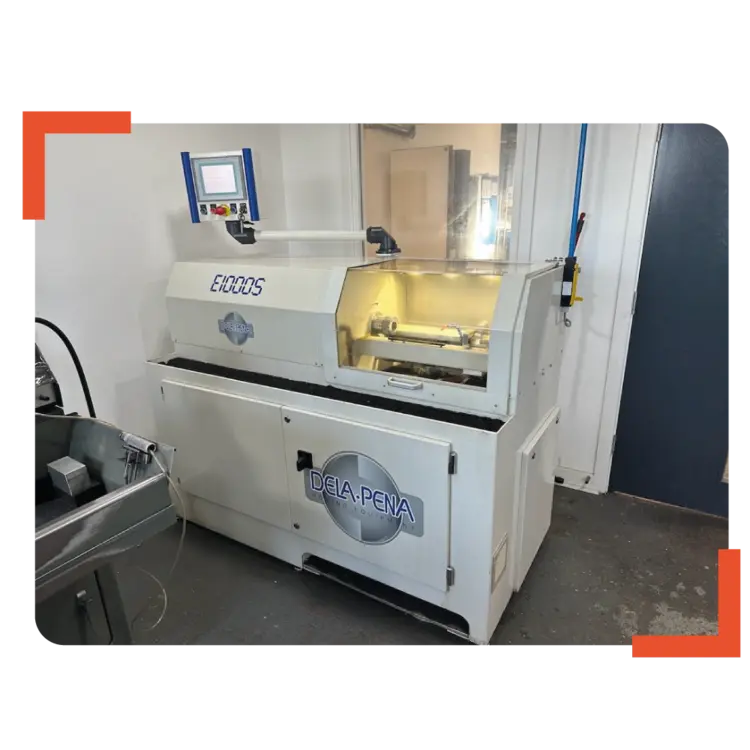

The Delapena 1000S CNC Honing Machine was bought for a contract that fell through.
In excellent condition and has hardly been used.
Suitable For: Precision internal bore honing

Delapena 1000S CNC Honing Machine – Specifications

Capacity
Honing diameter range: approx. 1.14 mm – 80 mm (application dependent)
Maximum stroke length: approx. 320 mm
Stroke speed: 1 – 25 m/min (fully adjustable)

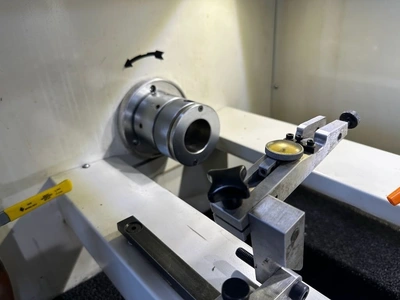

Spindle
Spindle speed range: 300 – 2,500 rpm (infinitely variable)
Typical spindle motor power: approx. 1.5 kW – 3 kW (model dependent)

Feed & Accuracy
Programmable stroking and feed control
Incremental feed resolution down to 0.1 micron
Honing accuracy capable below 1 micron (depending on tooling & application)
Control System

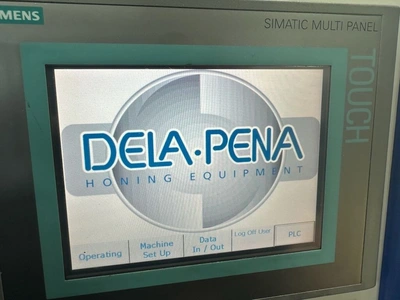

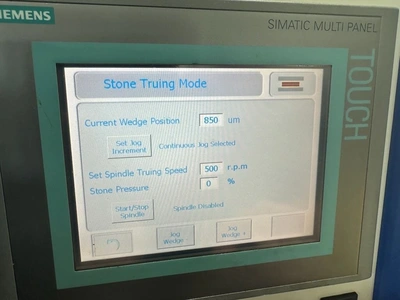

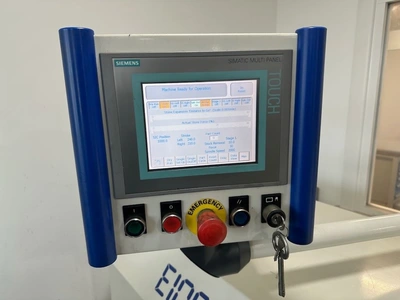

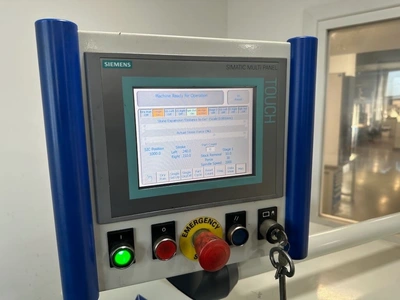

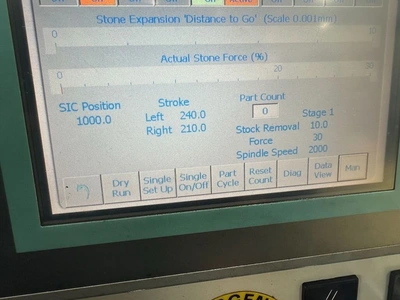

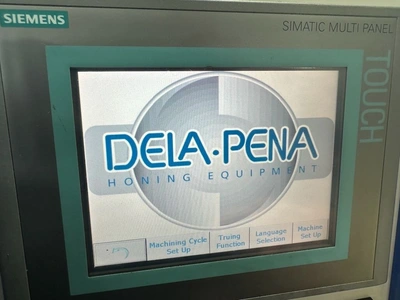

CNC control with touchscreen HMI
Conversational programming interface
USB program loading
Remote diagnostic capability (where fitted)

Construction & Features
Heavy-duty industrial machine structure

Servo-controlled stroking and rotational feed
Precision positioning for bore finishing
Designed for repeatable, high-accuracy honing cycles

Electrical

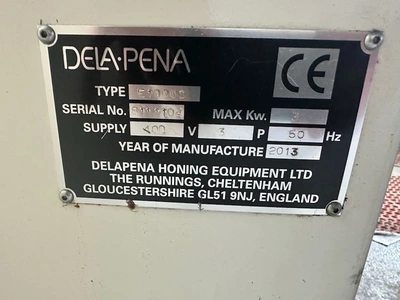

380 – 415V, 3-phase, 50 Hz (standard industrial supply)
Approximate Machine Data

Machine weight: approx. 700 kg
Compact footprint for workshop installation

Typical Applications
High-precision bore finishing
Automotive, aerospace, hydraulic, medical, tooling components
Production and prototype environments

Notes
Specific details may vary slightly by build specification
Ideal for precision finishing of bores where ultra-fine tolerance and surface finish are required

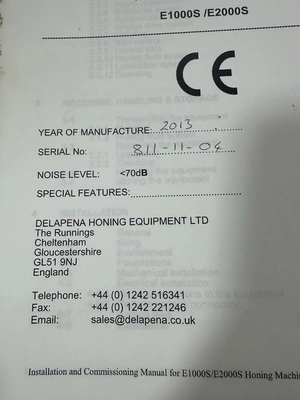

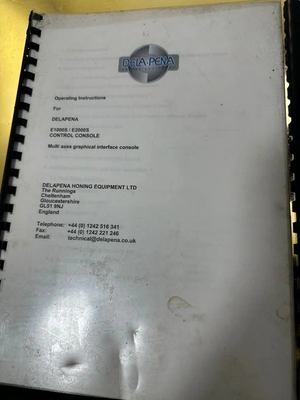

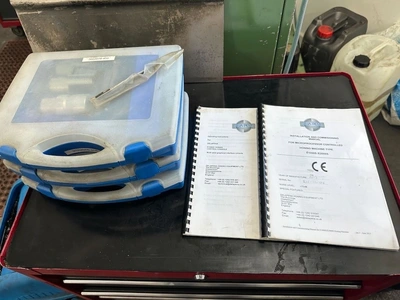

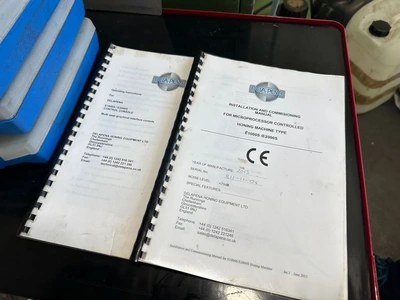

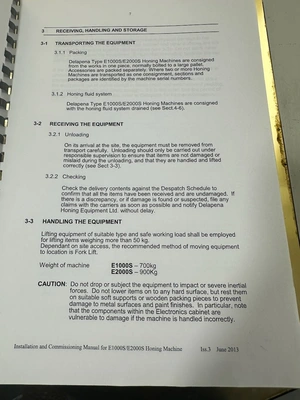

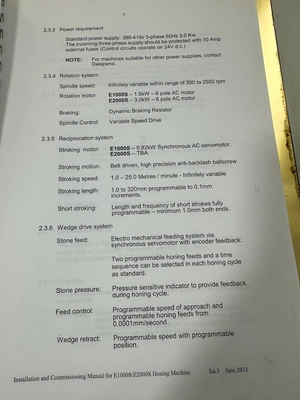

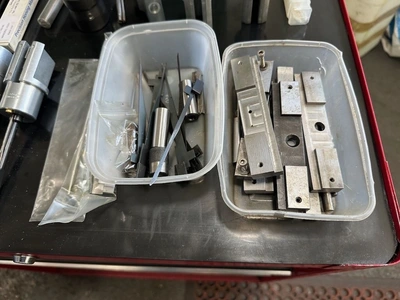

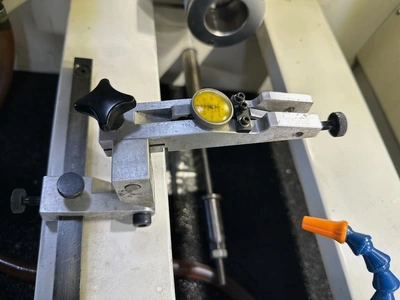

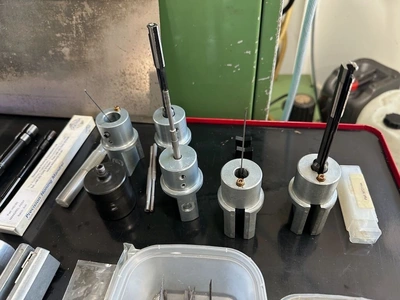

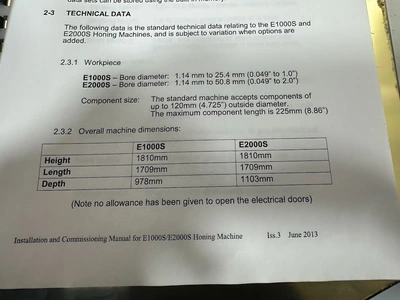

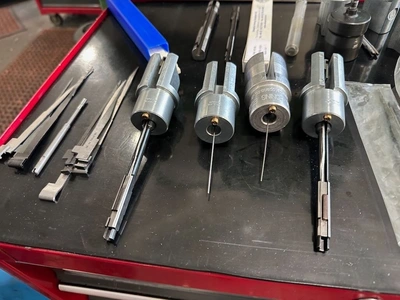

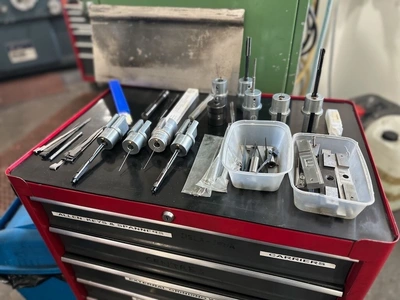

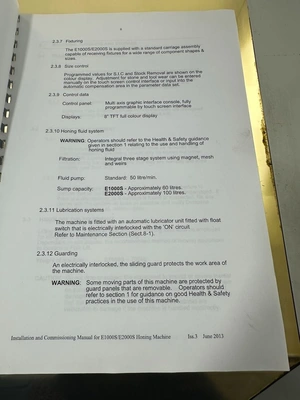

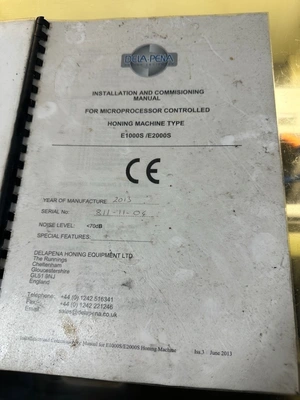

Includes Tooling and Manuals
And can be loaded to suitable transport free of charge.
