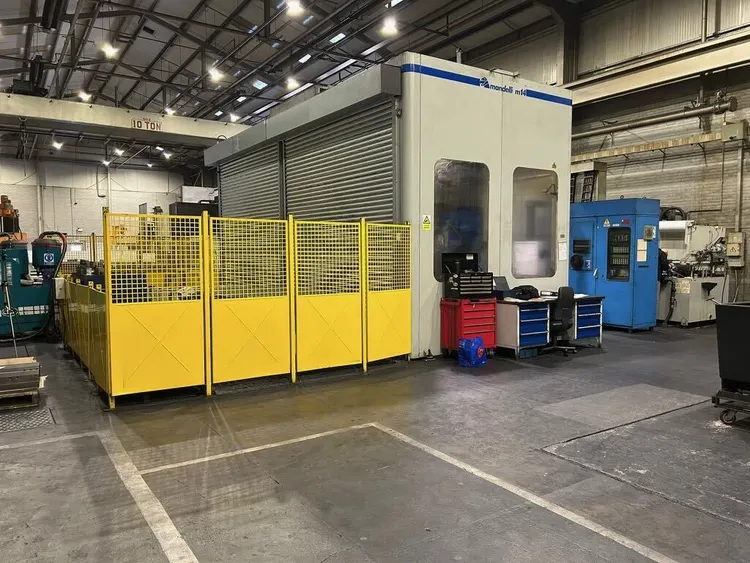

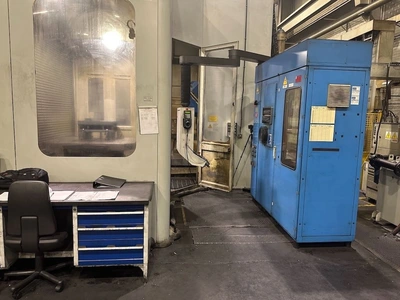

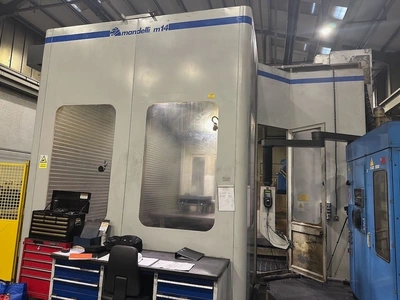

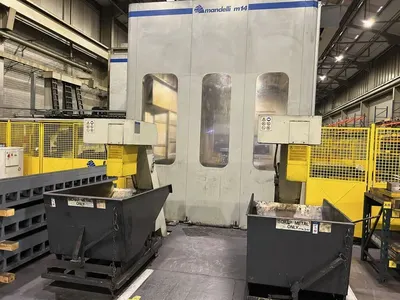

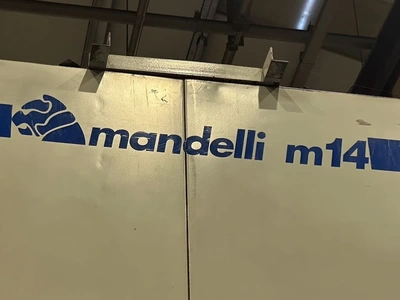

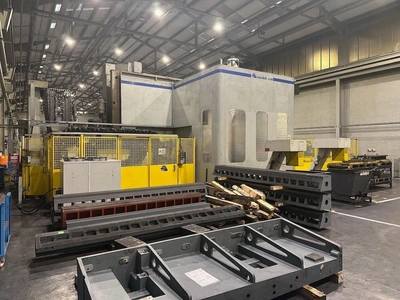

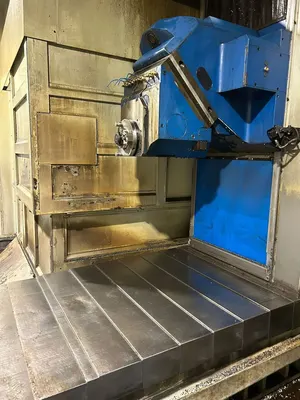

Mandelli M14 5 Axis Twin Pallet Machining Centre, Complete With 2 No Right-Angled Heads To Allow 5 Face Machining
Have one to sell?
ConditionUsed
1 available
This large-capacity, rare machine is currently in full production and remains in daily use within a leading UK precision engineering PLC. Maintained to high operational standards, it will be available for release at the end of the first quarter of 2026. This represents an exceptional opportunity to acquire a premium machine that has been operated in a controlled, professional production environment.
Please contact us to make an appointment to view.

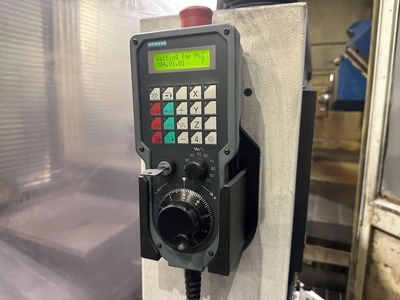

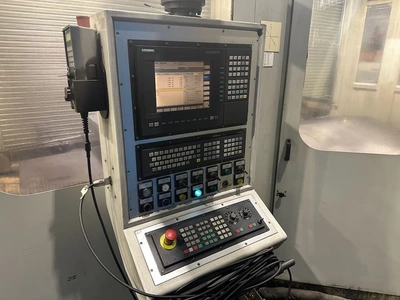

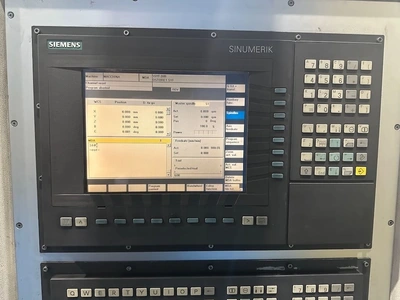

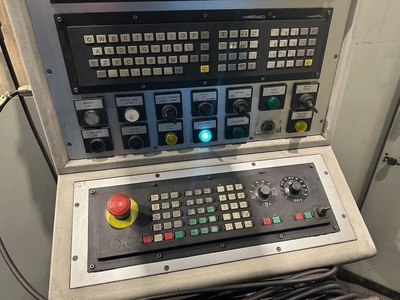

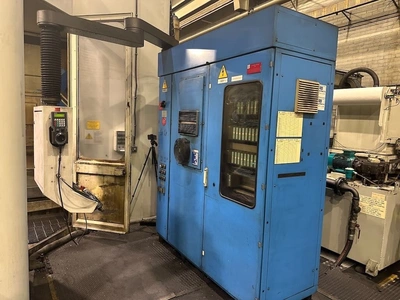

CNC Control: Siemens Sinumerik 840D

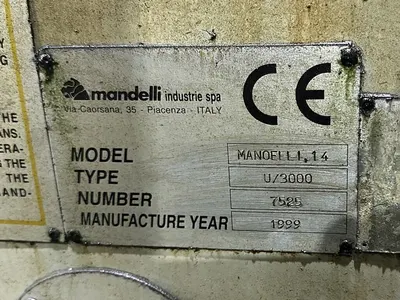

Serial No: 7525
MFD: March 1999

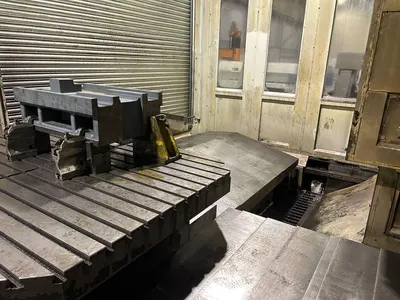

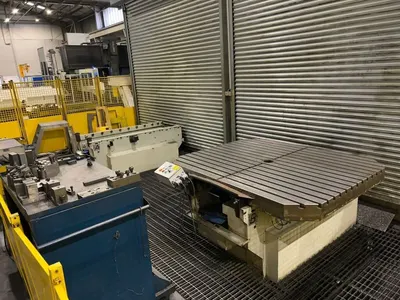

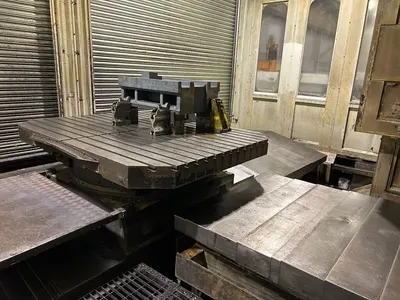

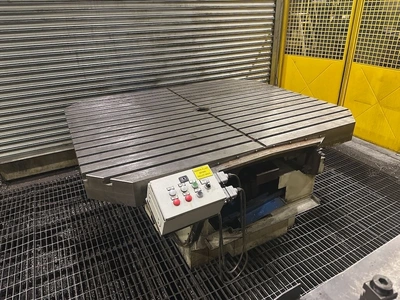

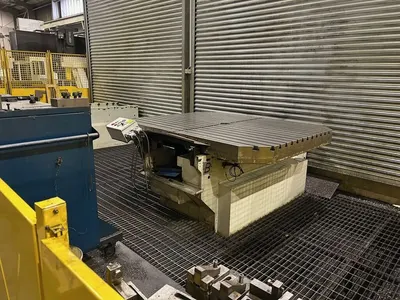

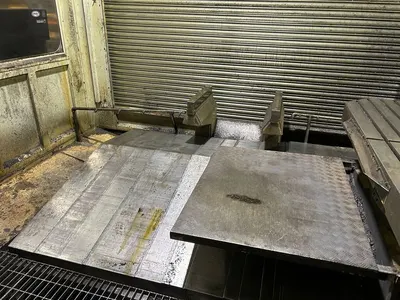

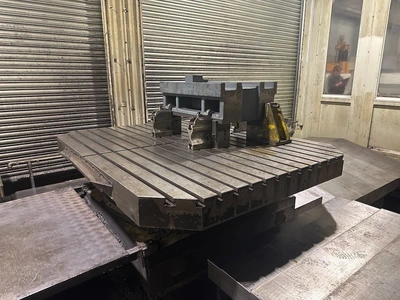

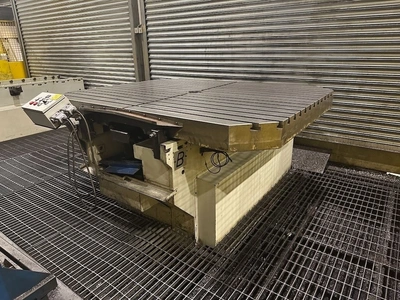

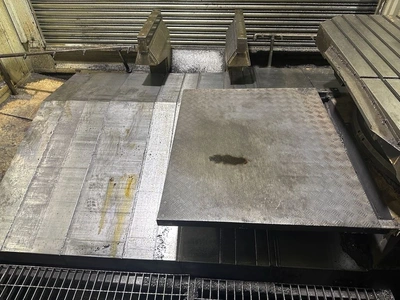

Pallet Size: 2000 x 1600mm
Max Pallet Load; 8000kg
X Axis Traverse: 4000mm
Y Axis Traverse: 2500mm
Z Axis Traverse: 2200mm
Feeds: 5 – 15000mm/min
Rapids: 15m/min
Maximum Component Diameter: 3200mm
Maximum Height of Component: 2500mm
B Axis Rotation: 0.001 Degrees
Rapids: 3 rpm
Head Rotation: 90 Degrees From Horizontal to Vertical
Spindle Speeds: 20 – 3000rpm
Spindle Taper: 50
Spindle Motor: 40Kw

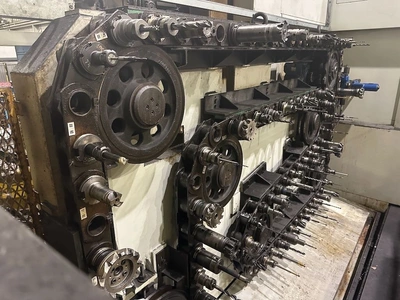

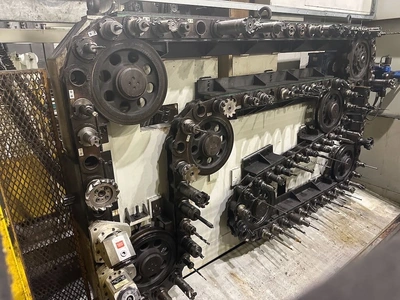

ATC: 100 Positions

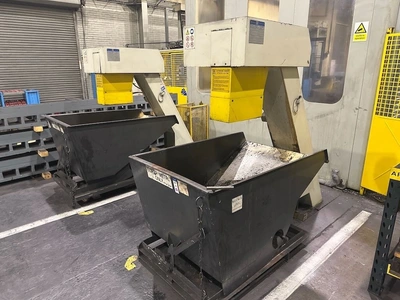

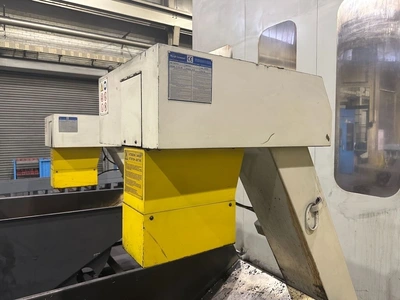

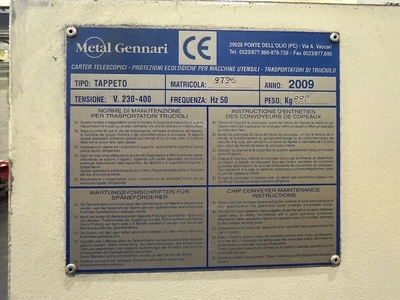

Swarf Conveyor: 2 No Metal Gennari
Coolant: Flood & Through Spindle
Foot Print: 13m x 11m x 4.9m High of Floor,
Maximum Foundation Depth: 2.4m
Approximate Weight: 80 Ton
Complete With:

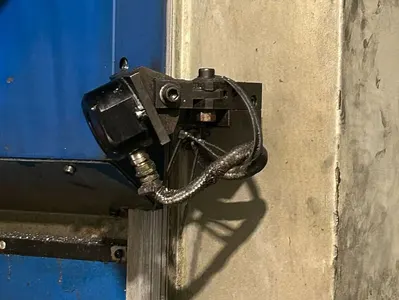

Renishaw Probing

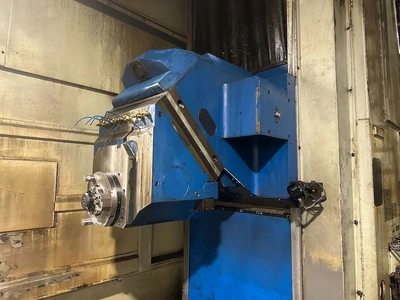

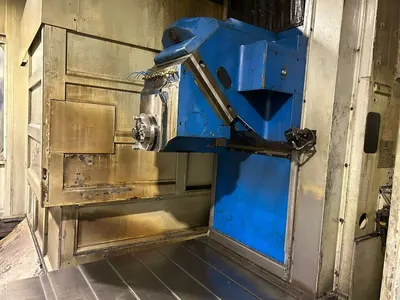

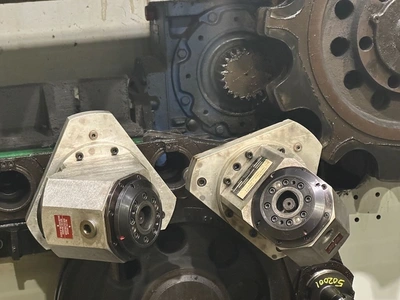

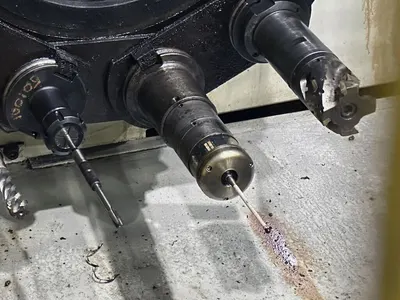

2 off Capto C4 Right Angled Heads
SK50 Tooling Package

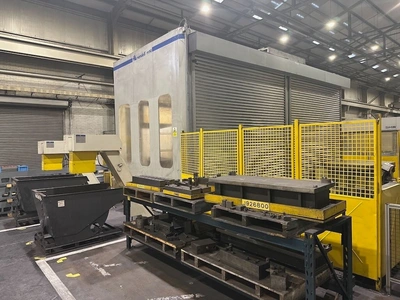

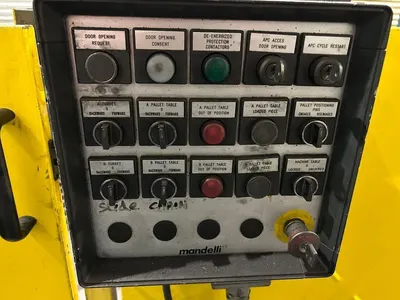

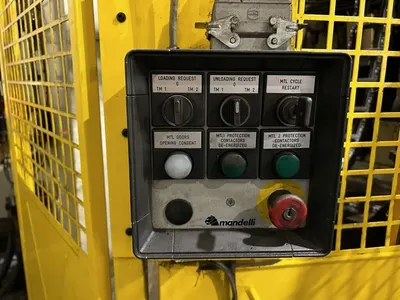

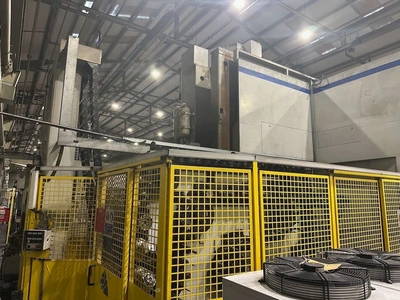

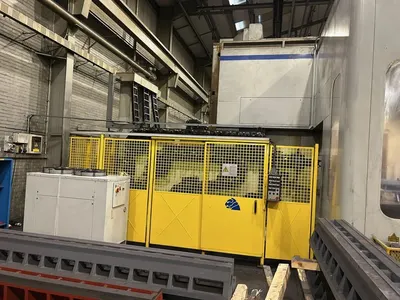

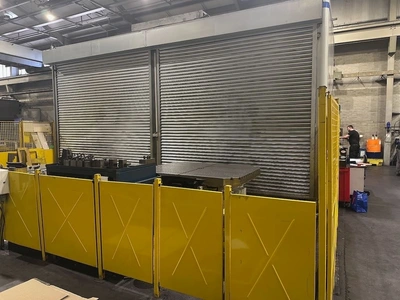

Interlock Guards

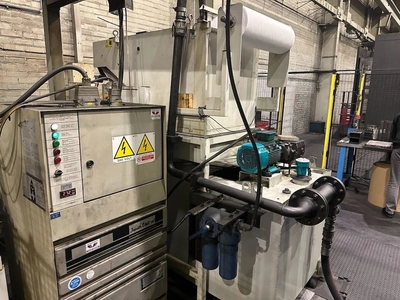

Paper Filtration System

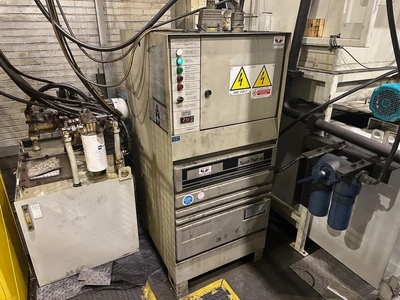

Chiller
| Chiller |
| Interlock Guards |
| Paper Filtration System |
| Renishaw Probing |
| Swarf Conveyor |
| Swarf Skip |
