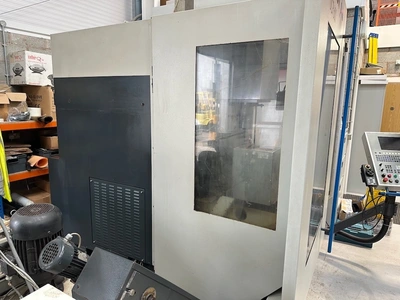

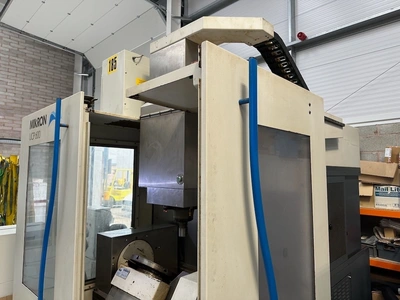

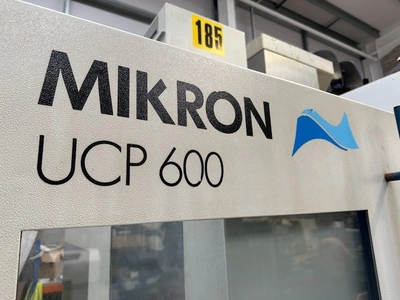

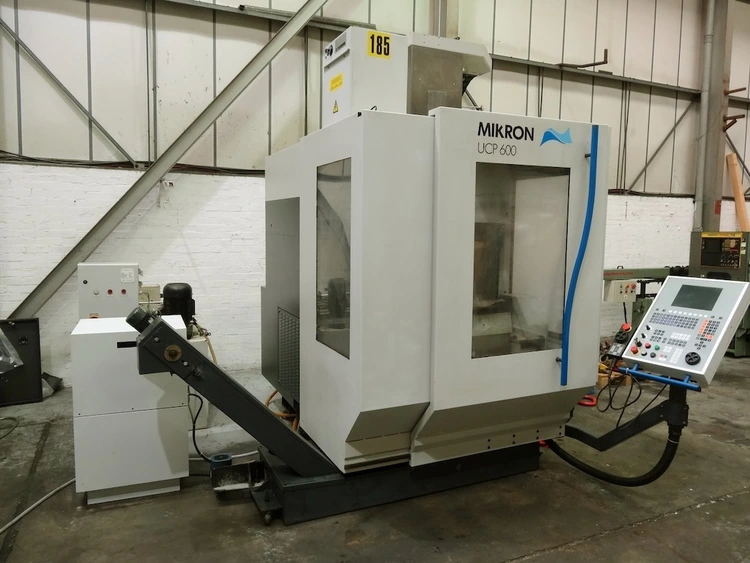

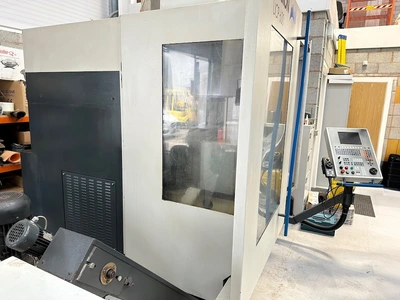

2001 MIKRON UCP 600 5 Axis VMC

Mikron UCP 600 Universal 5-Axis Vertical Machining Centre

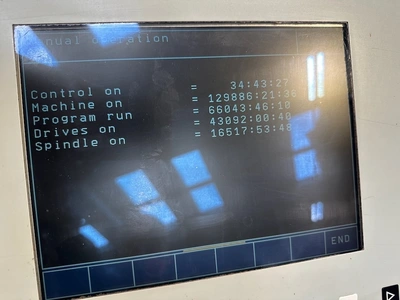

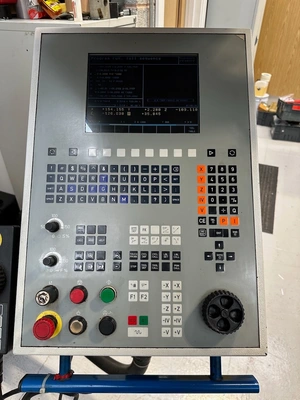

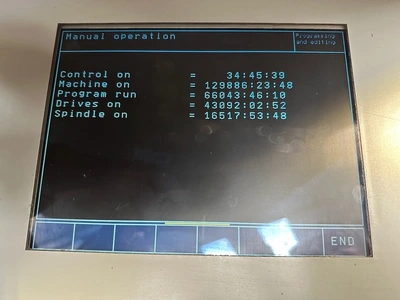

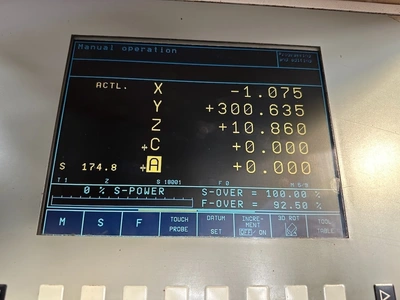

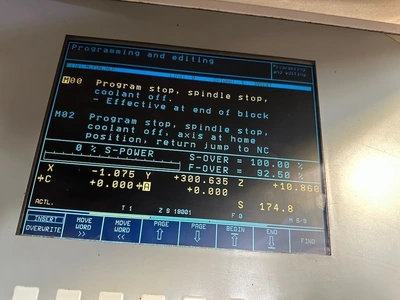

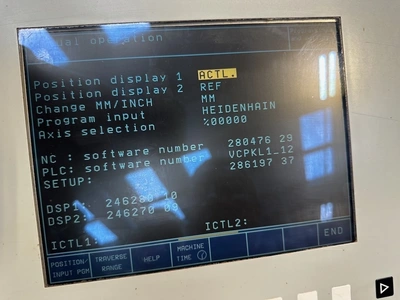

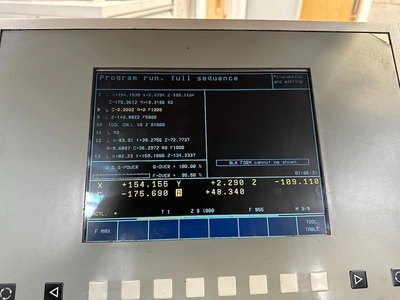

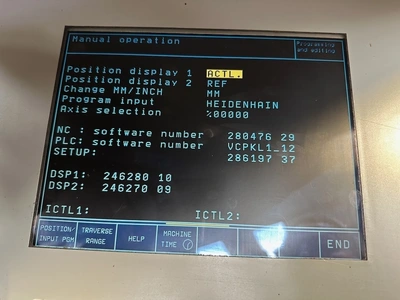

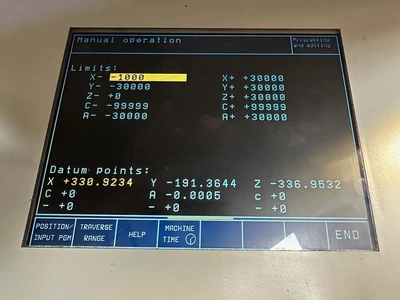

Heidenhain TNC 426/430 M CNC Control System
Serial number: 107.32.99.067
Year of manufacture: 2001
X-axis travel: 530 mm
Y-axis travel: 450 mm
Z axis travel: 450 mm
Rotary tilting table diameter: 400 mm
Maximum table load: 200 kg
Automatic tool changer: TC30: 30 HSK-63A/Din 69893 tools
Maximum rapid traverse: 22 m/min
Spindle speed: 50 - 18,000 rpm
Spindle power:16 kW at 40% 12kW at 100%
Spindle lubrication: Oil-Air

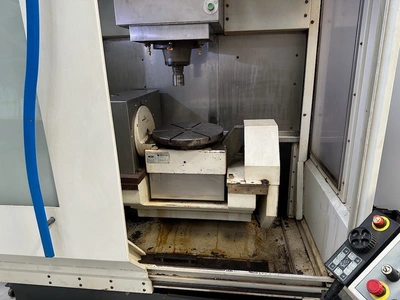

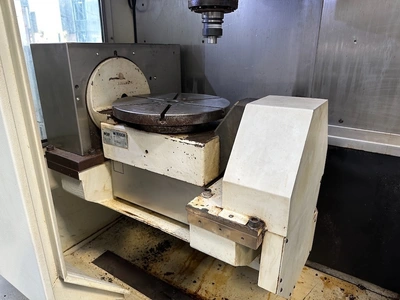

NC rotary tilting table with digitally controlled: 4th and 5th axis
Range of rotation of the table: C-axis: 360 degrees
Maximum rotary speed: 30 rpm
Swivel range: A-axis: -15 to + 122 degrees
Maximum swivel speed: 20 rpm

Machine installation dimensions: Machine weight: 6,500 kg
Width with operator panel and scraping chip conveyor: 2,930 mm
Depth with operator panel: 3,400 mm
Height: 2,645 mm

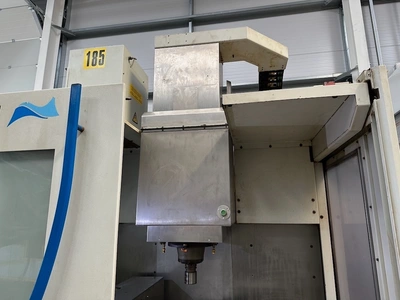

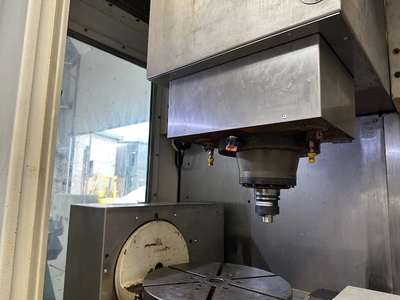

Equipped with: Step-Tec 18,000 rpm spindle;

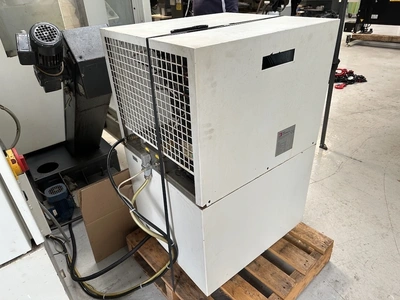

Separate spindle cooler;
Unilube oil/air spindle lubrication system;

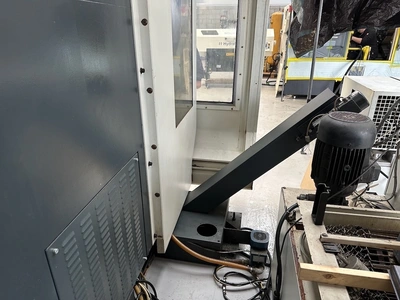

Coolant tank with scraping chip conveyor;

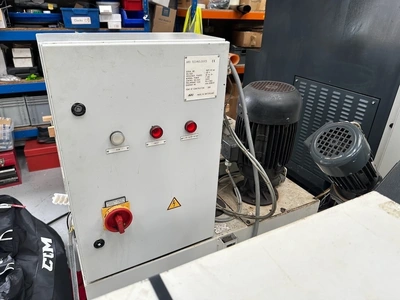

Separate coolant paper filtration equipment;
Renishaw MP 12 3D IR touch probe; 3D scanning system for tool measurement
