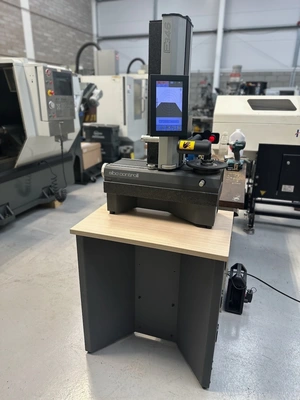

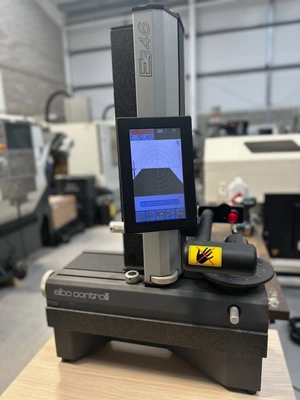

2015 ELBO CONTROLLI E346 Tool Presetter

Description

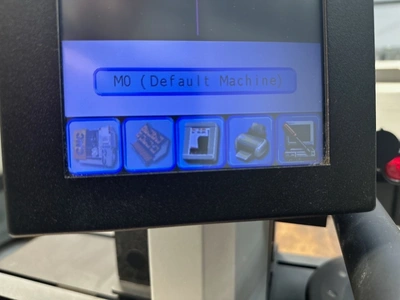

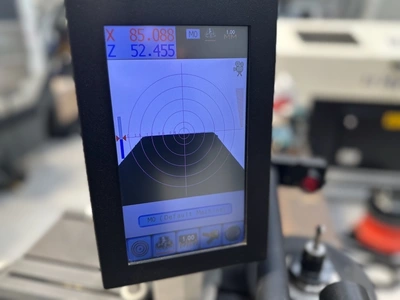

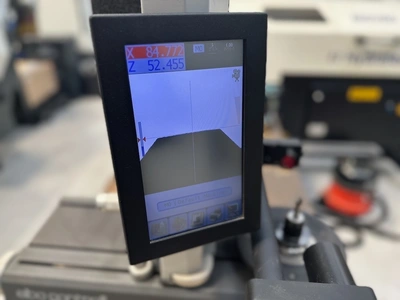

X-axis of 14.2"(360mm) and a Z-axis of 18.1" (460mm), The vision system for tool measuring includes a TFT 9" color touch screen with 110mm x 200mm image size and 25X magnification. The unit comes with a standard cutting edge inspection feature to get a crystal clear image of the condition of the cutting edge before measuring the tool.

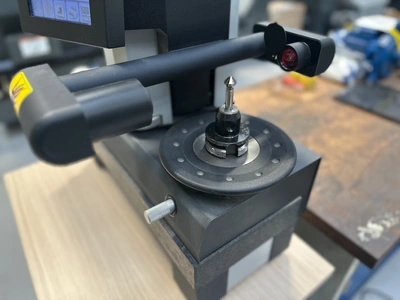

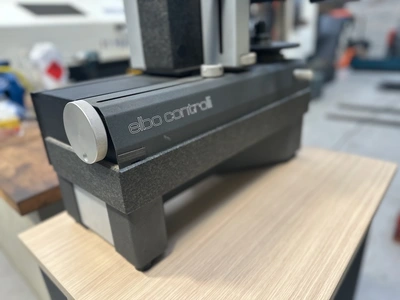

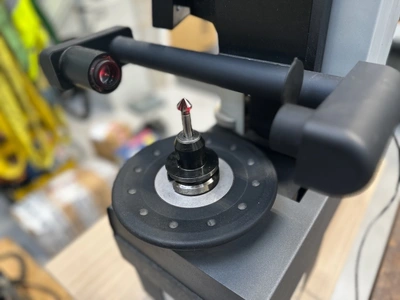

The presetter comes standard with the newly developed post-processing software, including 50 post-processors that translate measured data into CNC code. This data can then be put on a USB stick and tooling data can be inserted into the machine's CNC. These tool presetters are designed with a base and column of natural granite that guarantees the least thermal expansion of all construction materials. Interchangeable rotating spindle-holders with manual mechanical braking of the spindle-holders' rotation are available. E.g. CAT/ISO/BT, HSK, Capto, KM, VDI.
