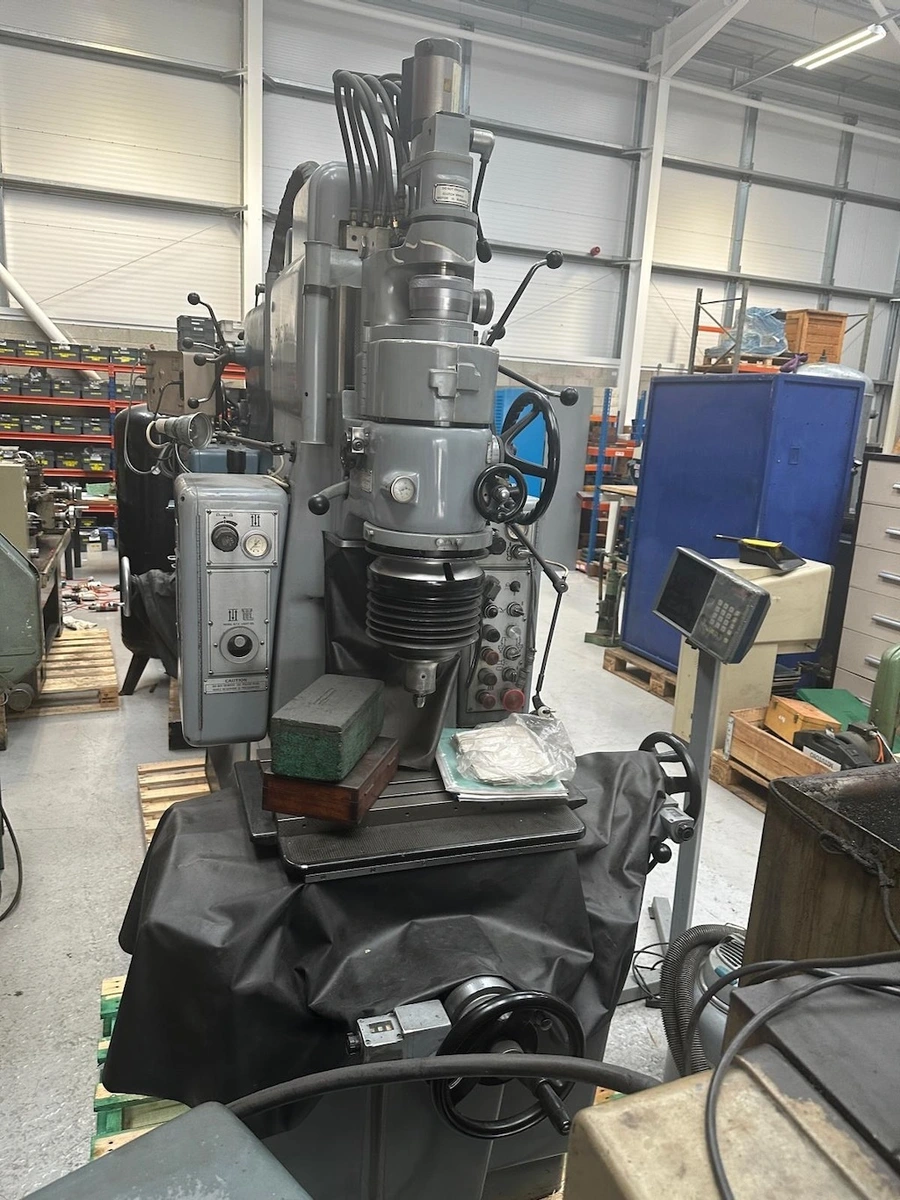

Used MOORE #2 JIG GRINDER | Jig Grinders

Moore No. 2 Jig Grinder – Typical Specifications

Machine Type
Precision Jig Grinder — Designed for high‑accuracy grinding of jigs, fixtures, dies, and precision components.

Work Capacity
Swing over table: Approx. 16–18" (406–457 mm)
Max grinding diameter: Approx. 14–16" (355–406 mm)
Grinding spindle travel (longitudinal): Approx. 12–16" (305–406 mm)
Table size: Approx. 18 × 16" (457 × 406 mm)
Note: Actual capacities vary slightly with model revisions and optional attachments.

Table/Work Movements
Table longitudinal travel: Approx. 10–14" (254–356 mm)
Table cross travel: Approx. 10–12" (254–305 mm)
Table swivel: Often ±30° or continuous indexing (model dependent)

Spindle
Grinding spindle type: Precision, air‑bearing or hydrostatic (depending on build)
Spindle speeds: Variable, up to approx. 30,000–35,000 rpm (with high‑speed attachments)
Spindle taper: Usually NMTB T‑slot with optional adapters (model dependent)

Features
Precision Air/Ball bearing spindles — for high surface finish and repeatability
Fine micrometer feeds — for accurate material removal
Workhead and tailstock — attachable for round grinding operations
Universal slide tables — for multi‑axis positioning
Ground ways and precision feed screws — designed for long‑term accuracy

Machine Physicals
Approx. weight: 1,800–2,500 lb (800–1,130 kg)
Approx. footprint: ~60" × 40" (1,525 × 1,015 mm)
Power requirements: Standard 3‑phase machine supply (varies by installation)
Typical Uses

Moore No. 2 Jig Grinders are widely used in:
Precision hole grinding
Die and mould finishing
Toolroom and aerospace components
High‑accuracy surface and profile grinding

Includes Extraction Unit.
