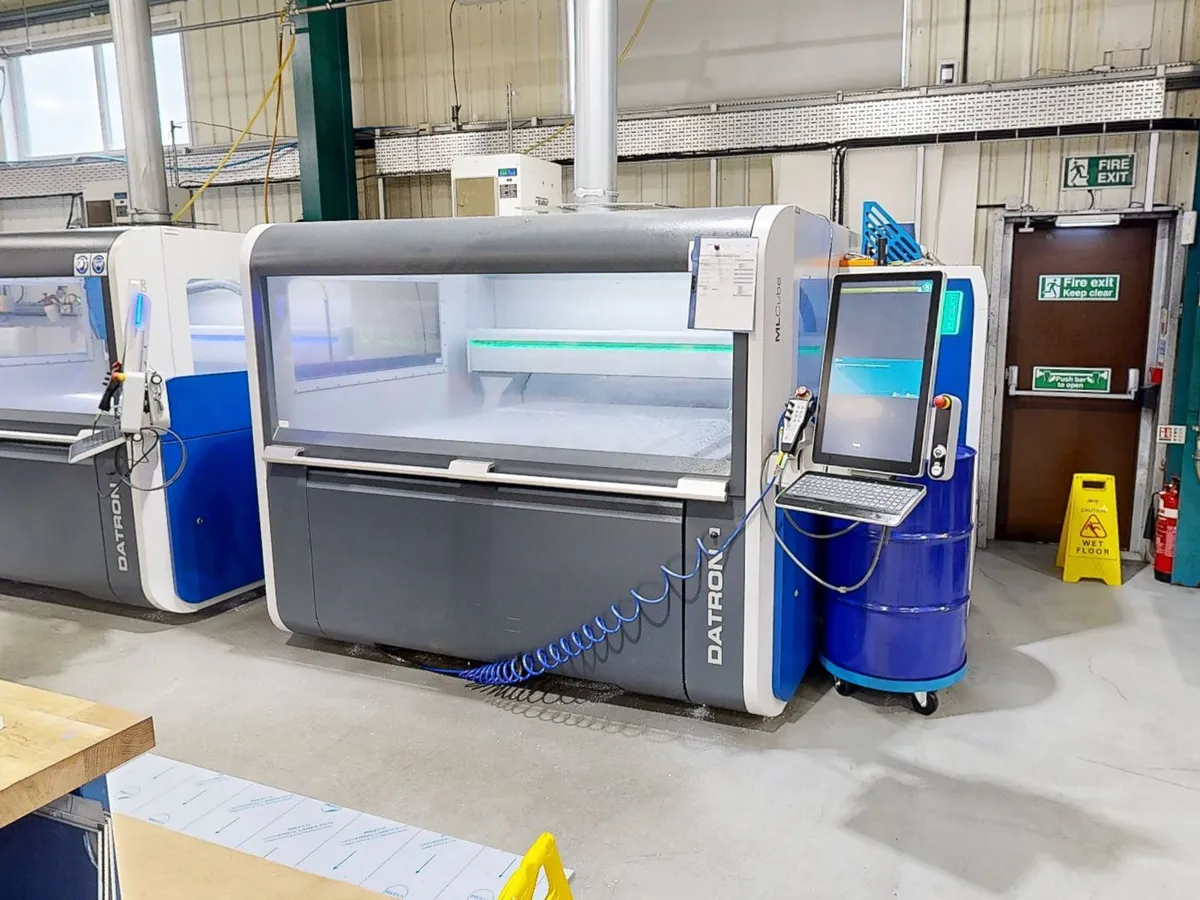

DATRON MLCUBE B Gantry-type milling machine

2022 DATRON MLCube B High-Speed CNC Machining Centre

New Spindle Fitted: 350h

Make: DATRON
Model: MLCube B
Year: 2022
Type: High-speed 3-axis CNC vertical machining centre / gantry-type milling machine
Control: DATRON next CNC control
Capacity & travels
X-axis travel: 1,520 mm
Y-axis travel: 1,150 mm
Z-axis travel: 245 mm
Working area: approx. 1,500 x 1,000 x 200 mm
Gantry clearance: approx. 200 mm

Spindle specification:
High-frequency precision spindle
Maximum spindle speed: up to 40,000 rpm
Spindle power range: approx. 0.6 – 3.0 kW (model dependent)
Tool interface: Direct clamp or HSK-E25

Toolchanger & control

DATRON ToolAssist System

Fitted with DATRON ToolAssist, providing expanded tool capacity for flexible, high-efficiency production.
Positioned outside the machining area, the system allows ergonomic tool loading and unloading,
including preparation during active machining, while protecting tools from chips and contamination.

Automatic tool changer: up to 60 tools
DATRON next touchscreen CNC control
Integrated tool length measuring system
Z-height probing/part referencing
Table & construction
Polymer-concrete machine table for rigidity and accuracy
Designed for vacuum table or clamping systems
Ideal for sheet material, aluminium plate, plastics and composites
Speeds & general specification
Rapid feed rate: up to 22 m/min
Approximate machine footprint: 2,410 x 2,280 x 1,950 mm
Approximate machine weight: 2,500 kg
400V 3-phase power supply
Typical applications
Ideal for:
Aluminium plate machining
Front panels and enclosures
Large flat components
Nested parts production
Plastics and composite materials
Precision subcontract machining
