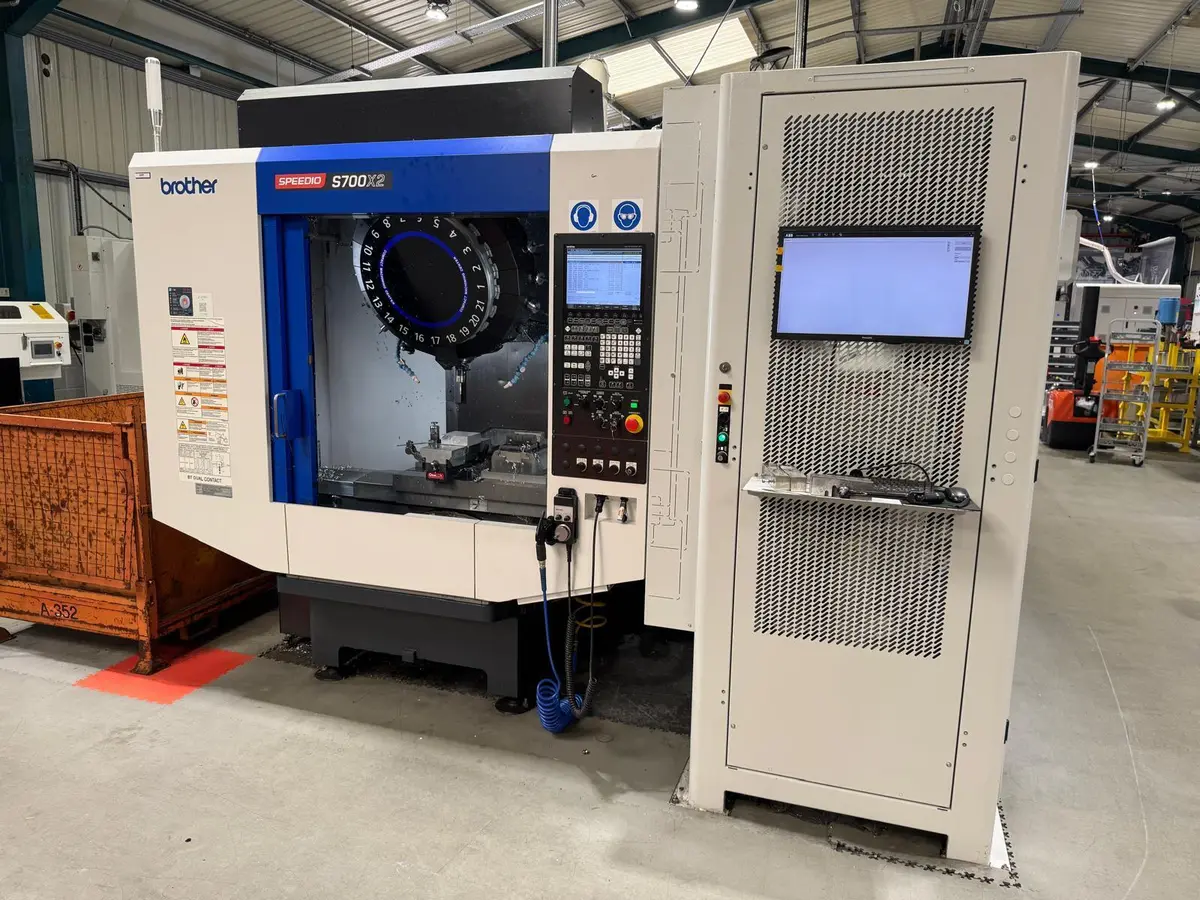

BROTHER SPEEDIO S700X2 with Feedio Automation Cell

2020 Brother SPEEDIO S700X2 CNC Vertical Machining Centre with ABB FEEDIO Robot Automation Cell
Machine Details

Make: Brother
Model: SPEEDIO S700X2
Year: 2020
Type: CNC Vertical Machining Centre
Control: Brother CNC-C00
Automation: ABB FEEDIO robotic loading/unloading cell

Capacity

X-Axis Travel: 700 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 300 mm
Table Size: 800 x 400 mm
Maximum Table Load: Approx. 250 kg

Spindle

Spindle Type: BBT30 face and taper spindle
Maximum Spindle Speed: 16,000 rpm
Spindle Specification: High-speed BBT30 spindle suitable for precision machining and high-speed production applications

Tooling

Automatic Toolchanger: 21 station
Tool Shank: BBT30
Maximum Tool Diameter: Approx. 110 mm
Maximum Tool Weight: Approx. 3 kg

Probing

Probing System: Blum spindle and tooling probes
Application: Tool measurement, tool breakage detection, workpiece setting and in-process checking

Coolant & Filtration

High Pressure Coolant System: NOP 35 bar high pressure modular coolant system
Filtration System: FSE 50 micron drum filtration conveyor
Chip Management: Conveyor and filtration system suitable for improved coolant cleanliness and continuous production use

Feeds & Speeds

Rapid Traverse X/Y/Z: 50 / 50 / 56 m/min
Cutting Feed Rate: Up to 30,000 mm/min
Tool Change Time: Approx. 0.7 seconds tool-to-tool
Chip-to-Chip Time: Approx. 1.3 seconds

Robot Automation

Automation System: ABB FEEDIO
Robot Manufacturer: ABB
Robot Type: 6-axis industrial robot
Robot Model: TBC
Application: Automatic component loading and unloading
Suitable For: Repeat production, reduced operator attendance and unmanned machining cycles

Machine Dimensions & Weight

Machine Weight: Approx. 2,400 kg, excluding automation cell
Machine Footprint: Approx. 2,050 x 2,223 mm, excluding automation cell
