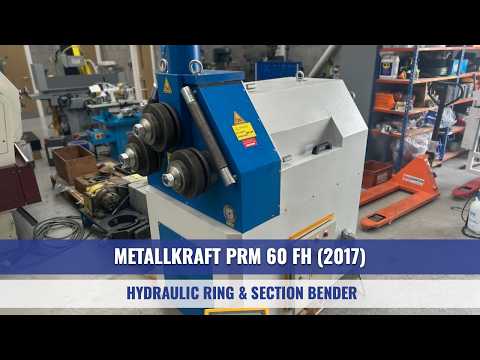

METALLKRAFT PRM 60 FH HYDRAULIC RING & SECTION BENDER WITH EXTENSIVE ADDITIONAL ROLLER TOOLING
Have one to sell?
ConditionUsed
1 available
£10,750.00 GBP

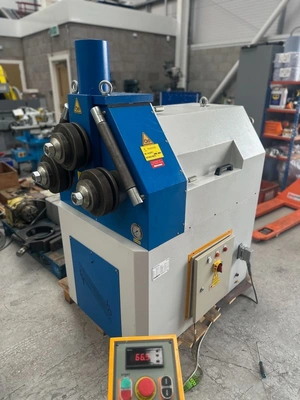

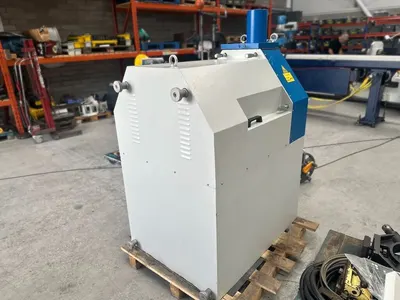

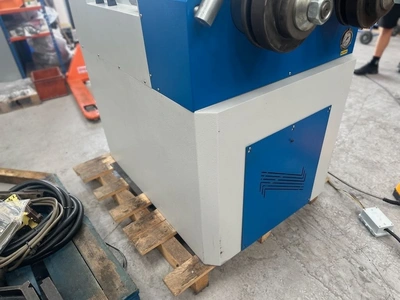

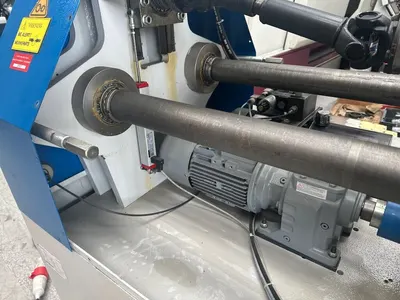

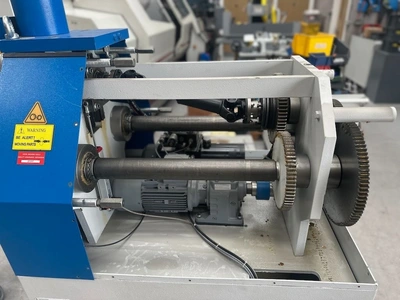

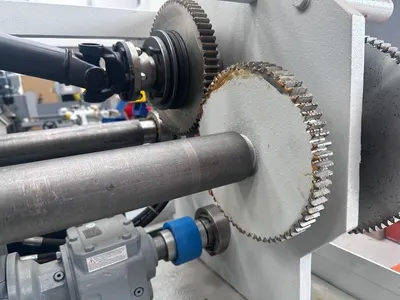

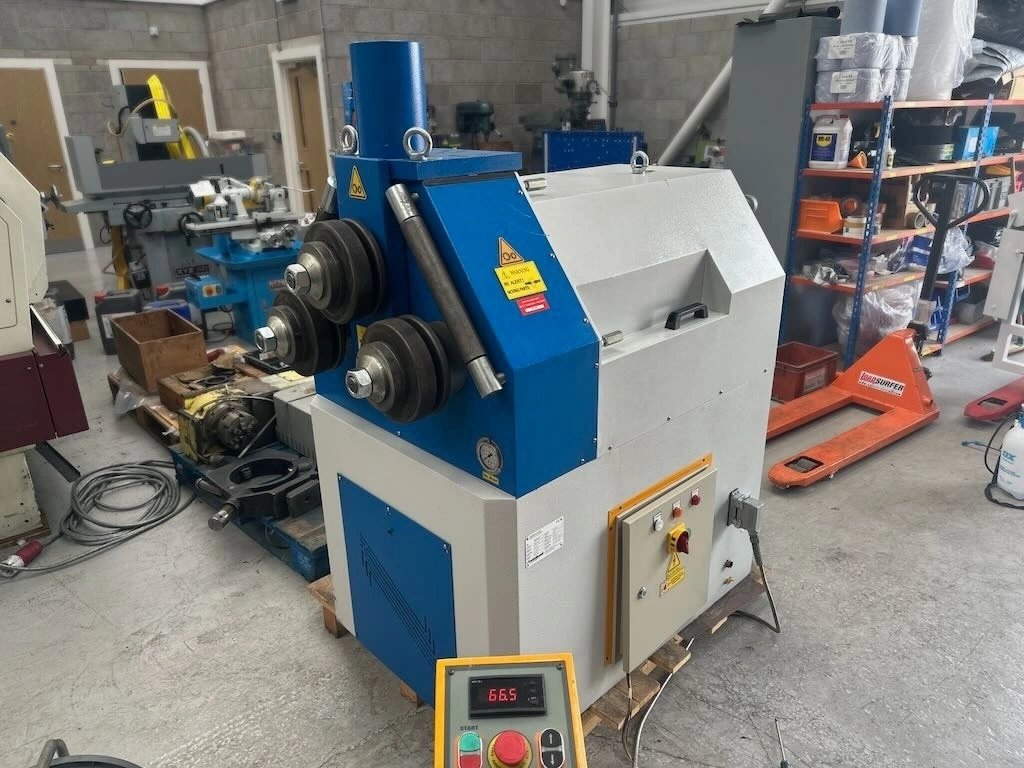

Heavy-duty hydraulic three-roll ring and section bending machine, suitable for rolling and bending steel profiles, flat bars, solid sections, tubes, and pipes. Featuring a robust welded steel construction, three powered hardened bending rollers, hydraulic adjustment of the upper roller, digital position readout, and separate mobile operating control with foot pedal. Designed for both horizontal and vertical bending operations.
TECHNICAL SPECIFICATIONS

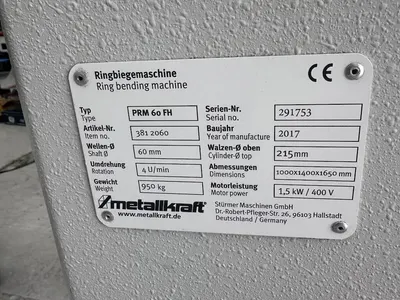

Manufacturer: Metallkraft (Stürmer Maschinen GmbH, Germany)
Model: PRM 60 FH
Year of Manufacture: 2017
Serial Number: 291753
Manufacturer's Reference: 3812060
Machine Type: Hydraulic 3-Roll Ring & Section Bender
Number of Driven Rollers: 3
Shaft Diameter: 60 mm
Upper Roller Diameter: 215 mm
Roller Rotation Speed: 4 m/min
Hydraulic Bending Force: 16 Tonnes
Maximum Hydraulic Pressure: 200 Bar

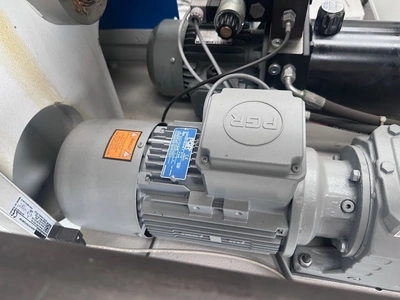

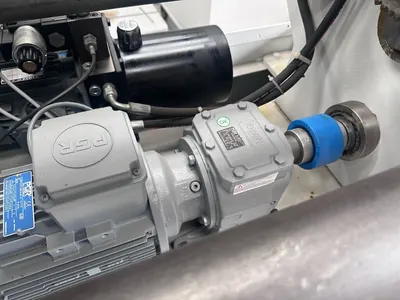

Motor Power: 1.5 kW
Electrical Supply: 400 V / 3 Phase / 50 Hz
Working Positions: Horizontal & Vertical
Machine Dimensions: 1,000 × 1,400 × 1,650 mm
Machine Weight: 950 kg
BENDING CAPACITIES (MANUFACTURER'S DATA)
Solid Square Bar 50 mm: Minimum Ø 800 mm
Solid Square Bar 20 mm: Minimum Ø 400 mm
Flat Bar 120 × 25 mm (Easy Way): Minimum Ø 600 mm
Flat Bar 80 × 20 mm (Hard Way): Minimum Ø 1,200 mm
UPN 120 Channel (Flanges Outward): Minimum Ø 800 mm
UPN 120 Channel (Flanges Inward): Minimum Ø 1,200 mm
FEATURES & EQUIPMENT

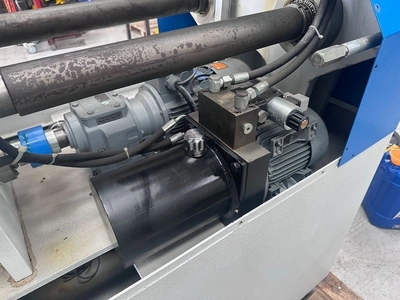

Heavy-Duty Hydraulic 3-Roll Bending System

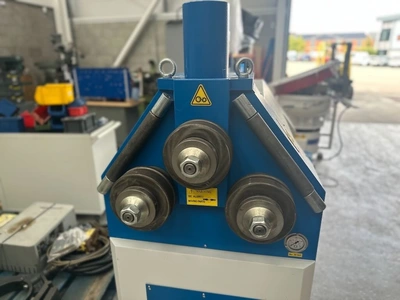

Three Powered Bending Rollers

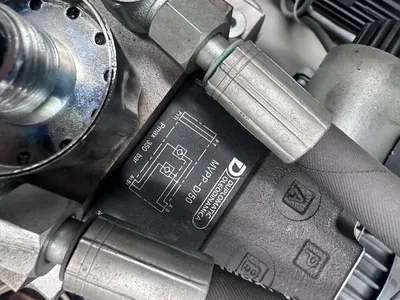

Hydraulic Upper Roller Adjustment
Digital Roller Position Readout
Adjustable Lateral Guide Rollers
Horizontal & Vertical Bending Capability
Forward & Reverse Roller Rotation

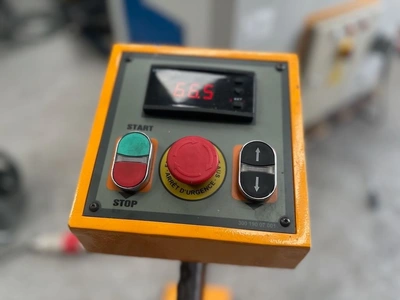

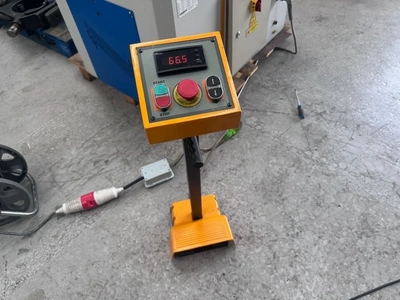

Mobile Operator Control Pedestal

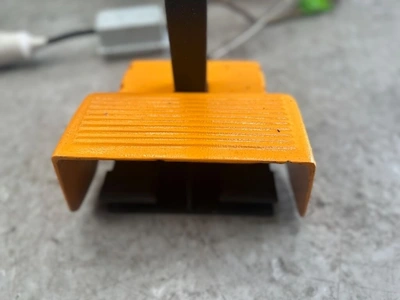

Foot Pedal Control

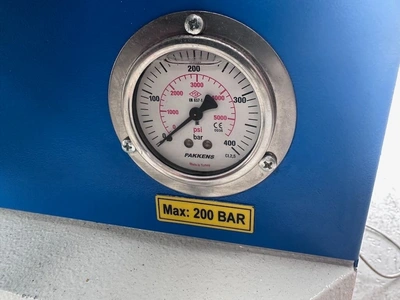

Hydraulic Pressure Gauge
Emergency Stop
CE Marked
ADDITIONAL ROLLER TOOLING INCLUDED

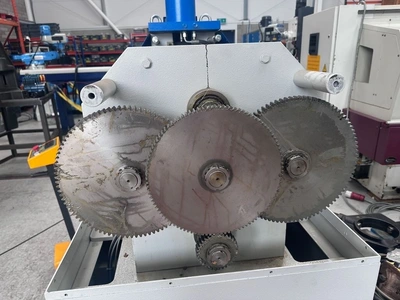

Extensive Selection of Complete Interchangeable Bending Roller Sets
Various Profiled and Grooved Roller Sets
Flat-Faced and Section Bending Rollers
Specialist Roller Tooling for Different Section Profiles

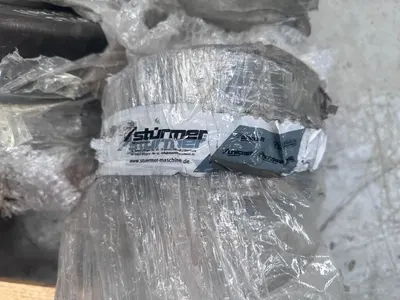

Original Stürmer / Metallkraft Branded Roller Tooling
Additional Roller Spacers and Components

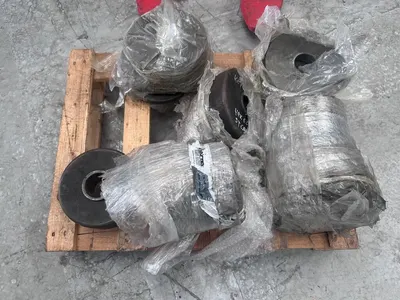

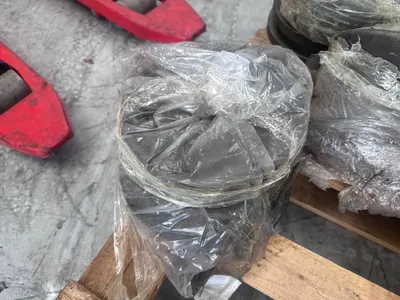

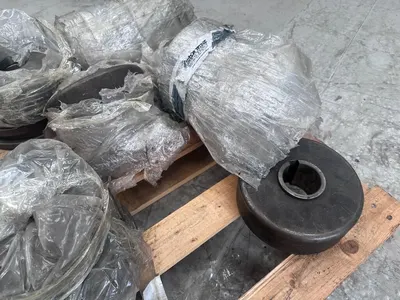

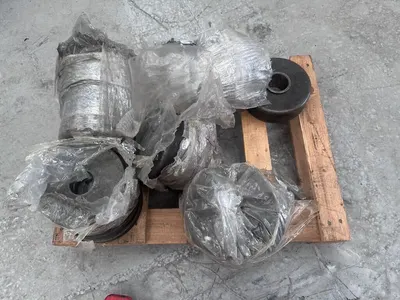

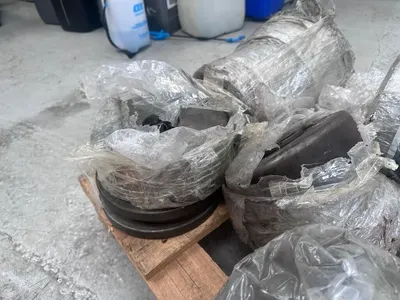

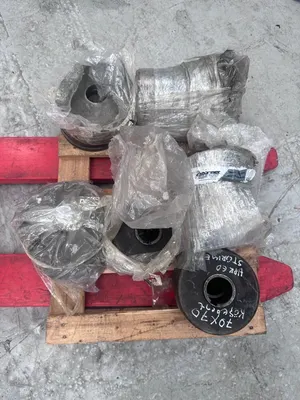

Additional Tooling Supplied on Wooden Pallet as Photographed
CONDITION & HISTORY
Ex-College Engineering Department
Appears to Have Had Very Little Use
Excellent Overall Cosmetic Condition
Complete Additional Roller Tooling Sets Included
NOTE: Manufacturer's bending capacities depend on material grade, section dimensions and the roller tooling fitted. Machine condition and apparent limited usage are based on visual inspection rather than recorded operating hours.
Heavy-duty hydraulic three-roll ring and section bending machine, suitable for rolling and bending steel profiles, flat bars, solid sections, tubes, and pipes. Featuring a robust welded steel construction, three powered hardened bending rollers, hydraulic adjustment of the upper roller, digital position readout, and separate mobile operating control with foot pedal. Designed for both horizontal and vertical bending operations.
Imperial
| Dimensions | 39.37 x 55.12 x 64.96" |
| Weight | 950kg |
TECHNICAL SPECIFICATIONS
Manufacturer: Metallkraft (Stürmer Maschinen GmbH, Germany)
Model: PRM 60 FH
Year of Manufacture: 2017
Serial Number: 291753
Manufacturer's Reference: 3812060
Machine Type: Hydraulic 3-Roll Ring & Section Bender
Number of Driven Rollers: 3
Shaft Diameter: 60 mm
Upper Roller Diameter: 215 mm
Roller Rotation Speed: 4 m/min
Hydraulic Bending Force: 16 Tonnes
Maximum Hydraulic Pressure: 200 Bar
Motor Power: 1.5 kW
Electrical Supply: 400 V / 3 Phase / 50 Hz
Working Positions: Horizontal & Vertical
Machine Dimensions: 1,000 × 1,400 × 1,650 mm
Machine Weight: 950 kg
BENDING CAPACITIES (MANUFACTURER'S DATA)
Solid Square Bar 50 mm: Minimum Ø 800 mm
Solid Square Bar 20 mm: Minimum Ø 400 mm
Flat Bar 120 × 25 mm (Easy Way): Minimum Ø 600 mm
Flat Bar 80 × 20 mm (Hard Way): Minimum Ø 1,200 mm
UPN 120 Channel (Flanges Outward): Minimum Ø 800 mm
UPN 120 Channel (Flanges Inward): Minimum Ø 1,200 mm
FEATURES & EQUIPMENT
Heavy-Duty Hydraulic 3-Roll Bending System
Three Powered Bending Rollers
Hydraulic Upper Roller Adjustment
Digital Roller Position Readout
Adjustable Lateral Guide Rollers
Horizontal & Vertical Bending Capability
Forward & Reverse Roller Rotation
Mobile Operator Control Pedestal
Foot Pedal Control
Hydraulic Pressure Gauge
Emergency Stop
CE Marked
ADDITIONAL ROLLER TOOLING INCLUDED
Extensive Selection of Complete Interchangeable Bending Roller Sets
Various Profiled and Grooved Roller Sets
Flat-Faced and Section Bending Rollers
Specialist Roller Tooling for Different Section Profiles
Original Stürmer / Metallkraft Branded Roller Tooling
Additional Roller Spacers and Components
Additional Tooling Supplied on Wooden Pallet as Photographed
CONDITION & HISTORY
Ex-College Engineering Department
Appears to Have Had Very Little Use
Excellent Overall Cosmetic Condition
Complete Additional Roller Tooling Sets Included
NOTE: Manufacturer's bending capacities depend on material grade, section dimensions and the roller tooling fitted. Machine condition and apparent limited usage are based on visual inspection rather than recorded operating hours.
