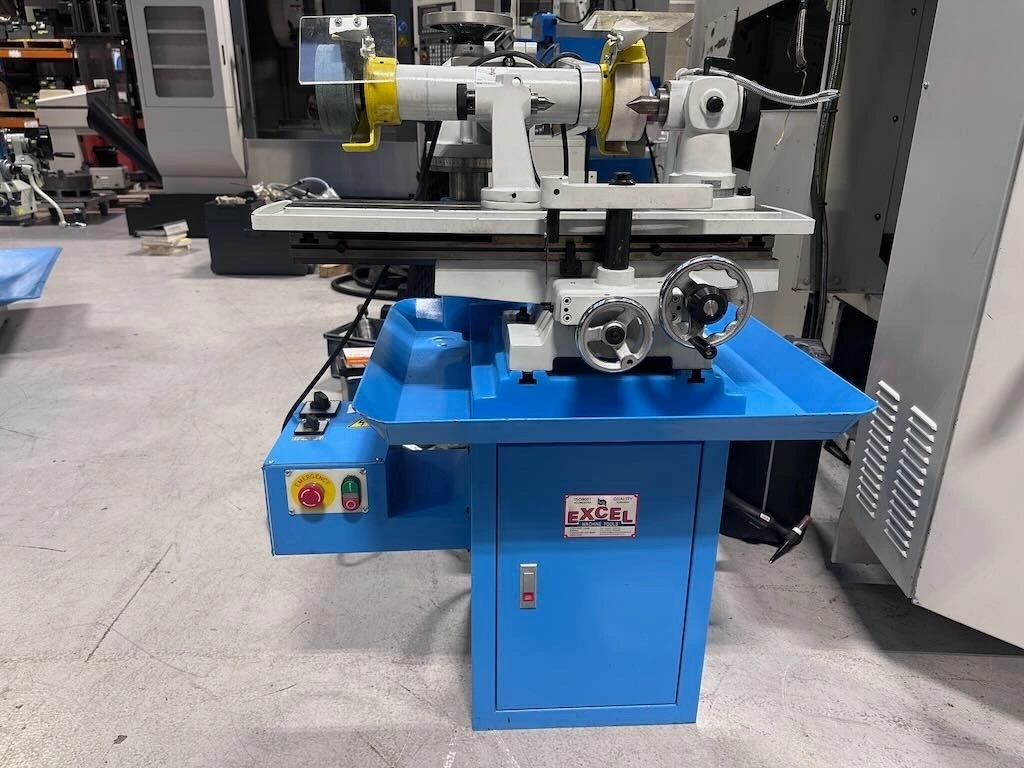

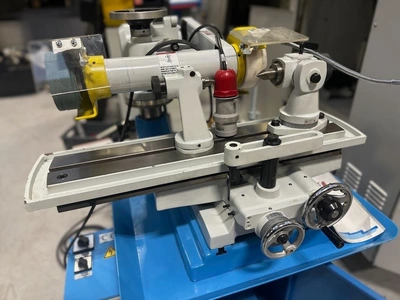

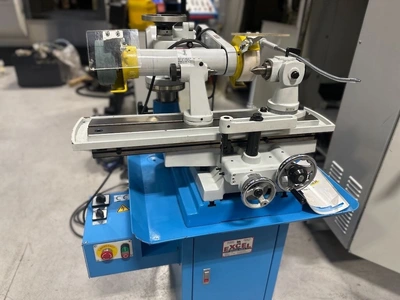

Excel PBM 450A Universal Tool & Cutter Grinder – Ex-College – Complete with Standard Accessories
Have one to sell?
ConditionUsed
1 available
£1,850.00 GBP
Ex-college machine presented in exceptionally clean condition, with indications of very little use. A versatile precision tool and cutter grinder, suitable for sharpening and regrinding milling cutters, end mills, slot drills, lathe tools, and various other cutting tools. Featuring a double-ended grinding spindle, fully adjustable grinding head, swivelling workhead, precision longitudinal and cross-feed movements, and an integral coolant system.
Manufacturer: Excel Machine Tools
Model: PBM 450A
Year of Manufacture: December 2015

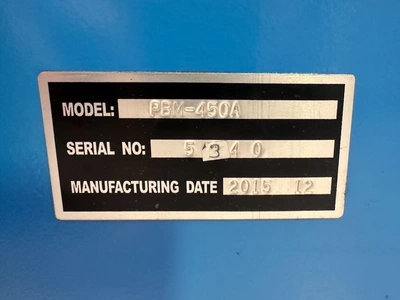

Serial Number: 5340
Distance Between Centres: 405 mm
Maximum Swing Over Table: 215 mm
Longitudinal Table Travel: 450 mm
Cross Travel: 150 mm
Vertical Wheel Adjustment: 150 mm

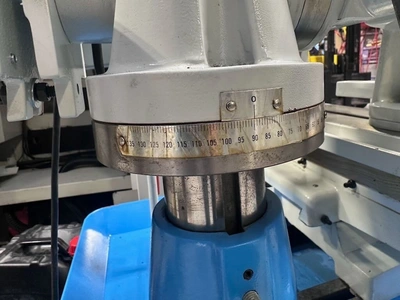

Grinding Head Swivel: 360°
Workhead Swivel: 360°
Maximum Grinding Wheel Diameter: 130 mm
Grinding Wheel Speed: 3,000 RPM

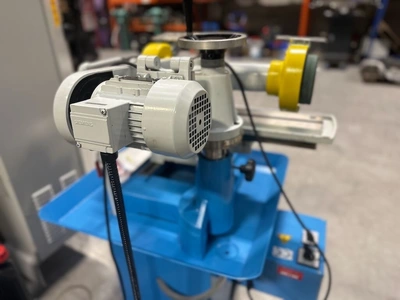

Grinding Motor: 0.5 HP (0.37 kW)
Electrical Supply: 3 Phase
Approximate Dimensions: 860 × 760 × 1,300 mm
Approximate Weight: 220 kg

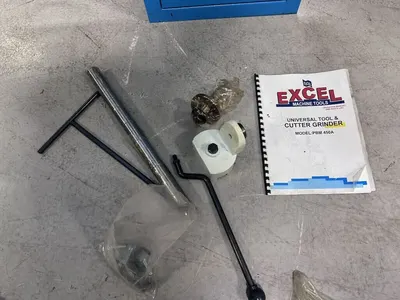

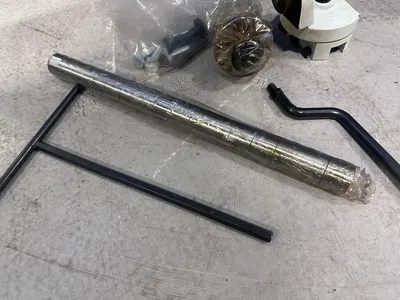

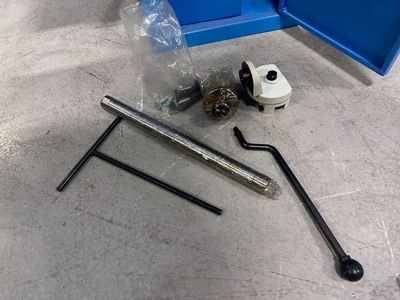

Standard Equipment & Accessories Included
Complete original standard accessory package
Cutter arbor

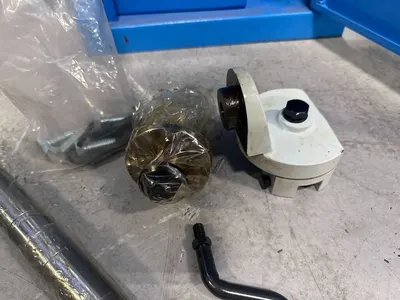

Tool-bit grinding attachment
Face-mill holder

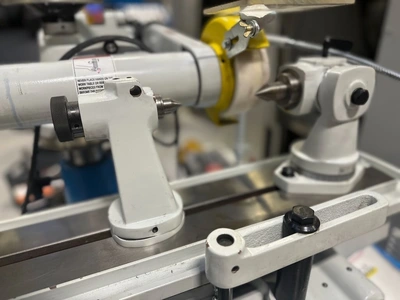

Universal swivelling workhead
Adjustable centres

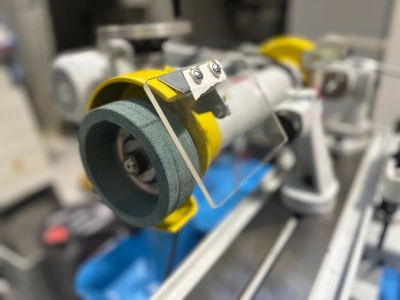

Double-ended grinding spindle
Grinding wheels
Grinding wheel guards and safety screens

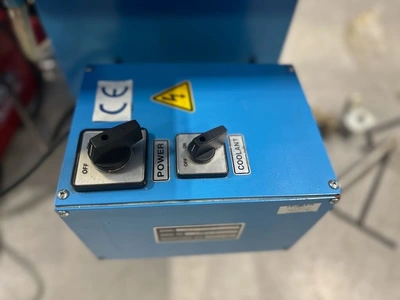

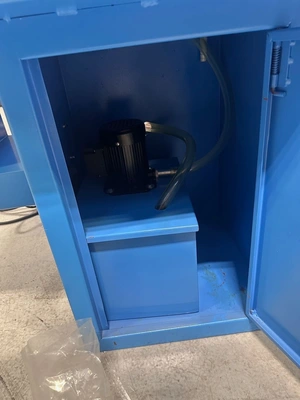

Integral coolant system with pump and reservoir

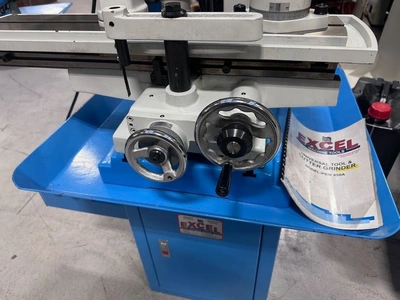

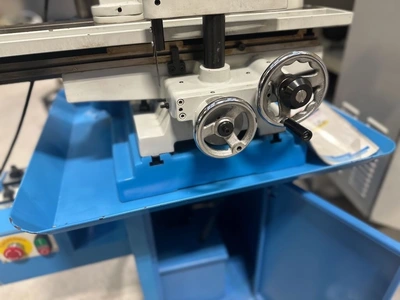

Precision handwheel adjustments

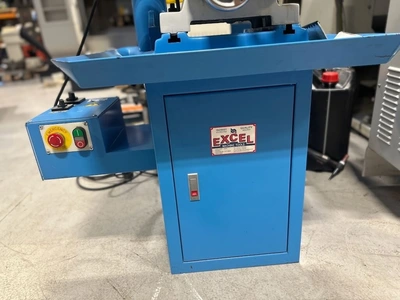

Cabinet base
Original Excel operation manual and parts list
Condition
Ex-college machine in exceptionally clean condition, with minimal signs of wear and apparently very little use.
Complete with all standard accessories and original instruction manual.
Ideal for toolrooms, precision engineering workshops, educational establishments and general cutting-tool sharpening applications.
Ex-college machine presented in exceptionally clean condition, with indications of very little use. A versatile precision tool and cutter grinder, suitable for sharpening and regrinding milling cutters, end mills, slot drills, lathe tools, and various other cutting tools. Featuring a double-ended grinding spindle, fully adjustable grinding head, swivelling workhead, precision longitudinal and cross-feed movements, and an integral coolant system.
Imperial
| Swing | 8.4646" |
| Centers | 15.945" |
| Grinding Wheel Dia. | 5.1181" |
| Power | 0.5 hp |
| Max RPM | 3,000 RPM |
| Dimensions | 860 × 760 × 1300 |
| Weight | 220 |
Manufacturer: Excel Machine Tools
Model: PBM 450A
Year of Manufacture: December 2015
Serial Number: 5340
Distance Between Centres: 405 mm
Maximum Swing Over Table: 215 mm
Longitudinal Table Travel: 450 mm
Cross Travel: 150 mm
Vertical Wheel Adjustment: 150 mm
Grinding Head Swivel: 360°
Workhead Swivel: 360°
Maximum Grinding Wheel Diameter: 130 mm
Grinding Wheel Speed: 3,000 RPM
Grinding Motor: 0.5 HP (0.37 kW)
Electrical Supply: 3 Phase
Approximate Dimensions: 860 × 760 × 1,300 mm
Approximate Weight: 220 kg
Standard Equipment & Accessories Included
Complete original standard accessory package
Cutter arbor
Tool-bit grinding attachment
Face-mill holder
Universal swivelling workhead
Adjustable centres
Double-ended grinding spindle
Grinding wheels
Grinding wheel guards and safety screens
Integral coolant system with pump and reservoir
Precision handwheel adjustments
Cabinet base
Original Excel operation manual and parts list
Condition
Ex-college machine in exceptionally clean condition, with minimal signs of wear and apparently very little use.
Complete with all standard accessories and original instruction manual.
Ideal for toolrooms, precision engineering workshops, educational establishments and general cutting-tool sharpening applications.
